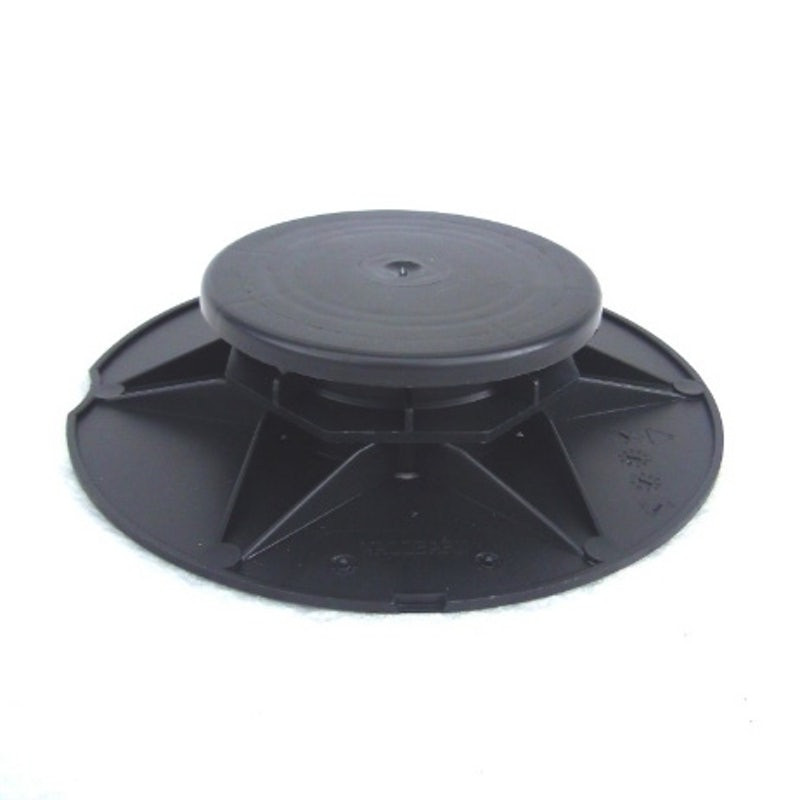

Wallbarn Flat Headed Adjustable Support Pad

Code:
SP-FLAT-Z
Brand:

If a very wide joist beam is being used and the 90mm gap on TD supports is not sufficient, a flat headed support pad can be used to hold the joist. These headpieces are 120mm in diameter and completely smooth. They give extra support without anything protruding up from the sur...Read More

Create a wishlist

"When I made a mistake ordering…"

Dan

Description

If a very wide joist beam is being used and the 90mm gap on TD supports is not sufficient, a flat headed support pad can be used to hold the joist. These headpieces are 120mm in diameter and completely smooth. They give extra support without anything protruding up from the surface and potentially interfering with the levels.

Provided that the joists are fixed together with cross battens and built into a framework, the whole structure will be sturdy, weight bearing and secure.

Having a larger batten in place allows for more weight displacement through the system, but care should always be taken no to overload the support pads. Each pad will tolerate 400kg, but if the span is too great the load bearing is multiplied. Wallbarn recommends a maximum span of 600mm between support pads.

Flat headed support pads can also be used beneath the centre of paving slabs where extra support is needed, for example, very large (over 600mm) flags or thinner tiles.

FLAT HEADED ADJUSTABLE SUPPORTS ARE SUITABLE FOR BOTH PAVING SLABS AND TIMBER DECKING

Details

Height 35mm - 50mm
65mm - 100mm
Type Adjustable Decking Support Pedestals
Support Base Pads
