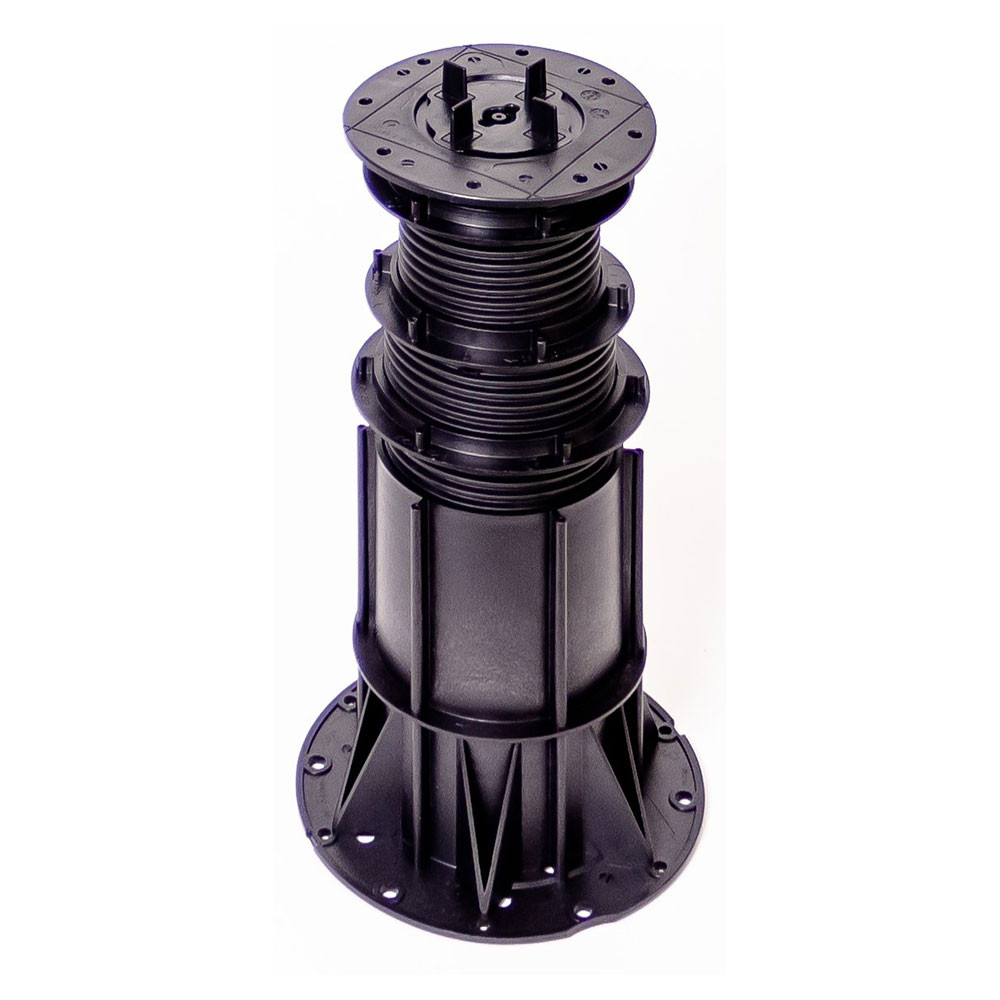

DISCON - Wallbarn 215-320mm Paving Megapad

Code:
SP-MEG-215-Z
Brand:

This heavy-duty Wallbarn Paving Megapad is specifically designed to uphold suspended paving systems requiring large weight tolerances. The innovative design allows you to make precise millimetre adjustments and lock them into place to prevent unwinding. Megapad's are held in p... Read More

Create a wishlist

"Good price"

TREVOR FRANCIS

Description

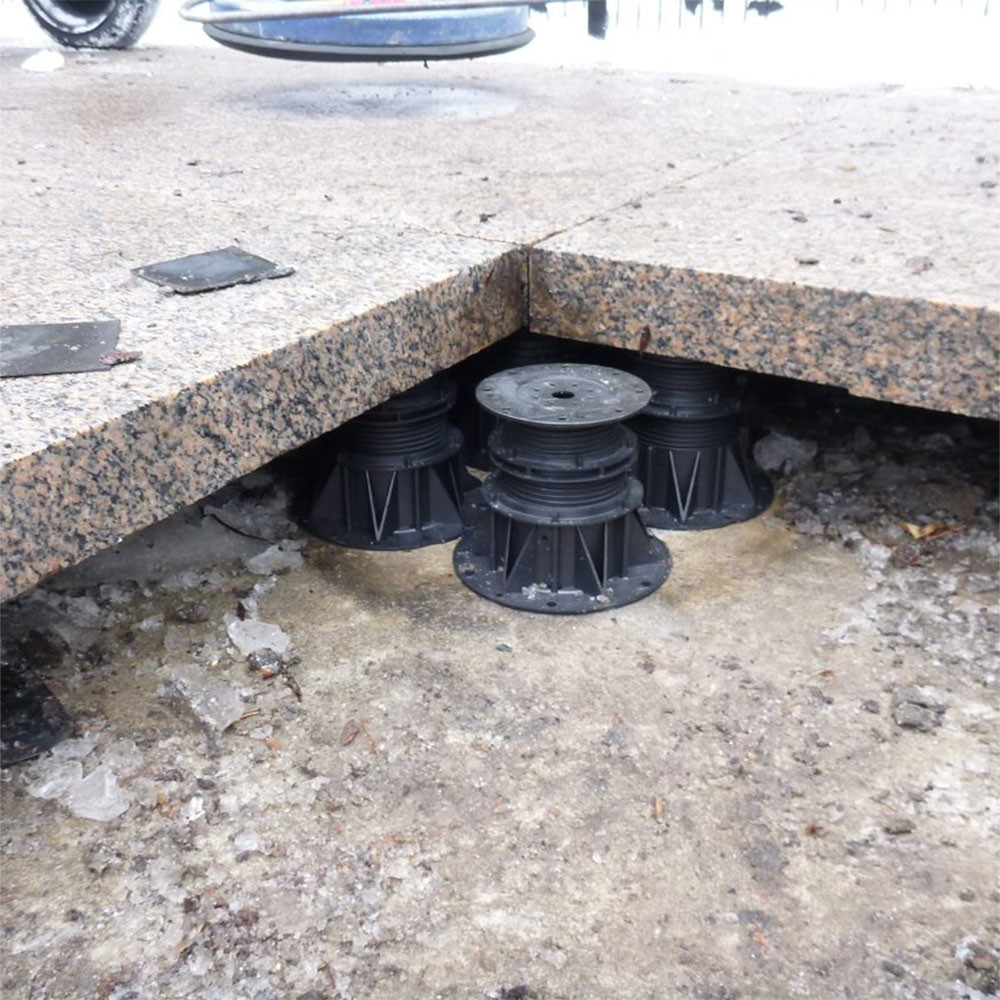

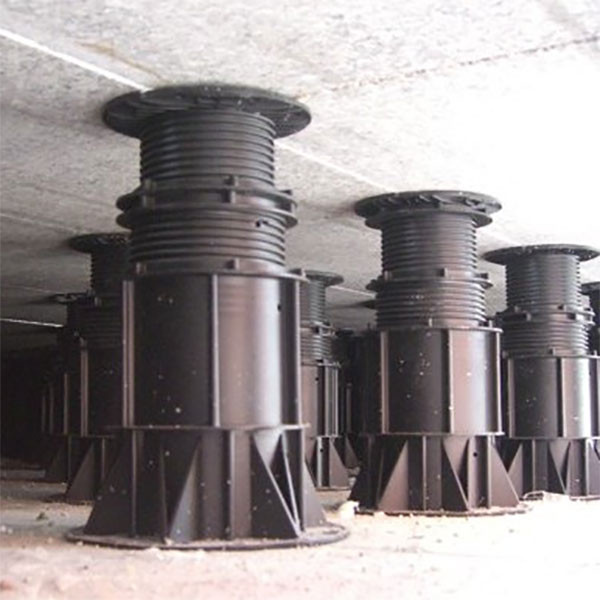

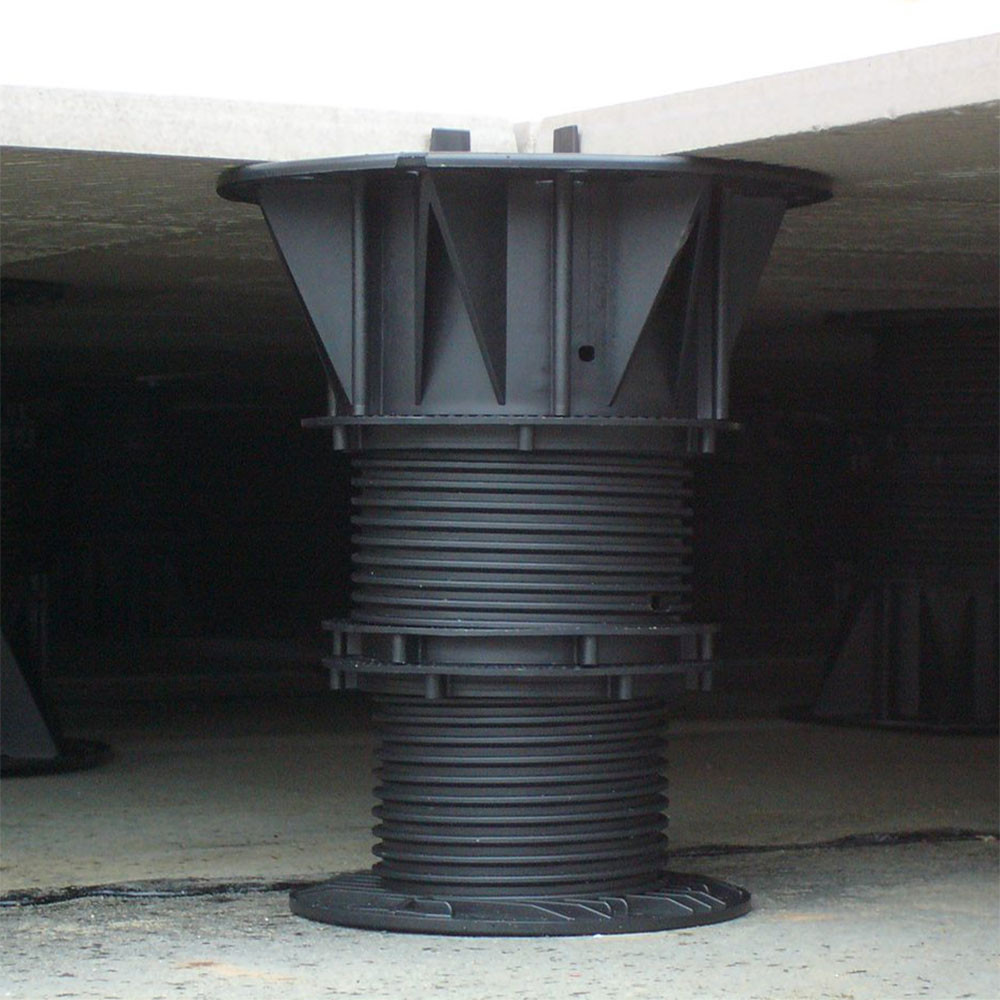

This heavy-duty Wallbarn Paving Megapad is specifically designed to uphold suspended paving systems requiring large weight tolerances. The innovative design allows you to make precise millimetre adjustments and lock them into place to prevent unwinding. Megapad's are held in place with only the weight of their top load, so no specialist tools are needed during installation.

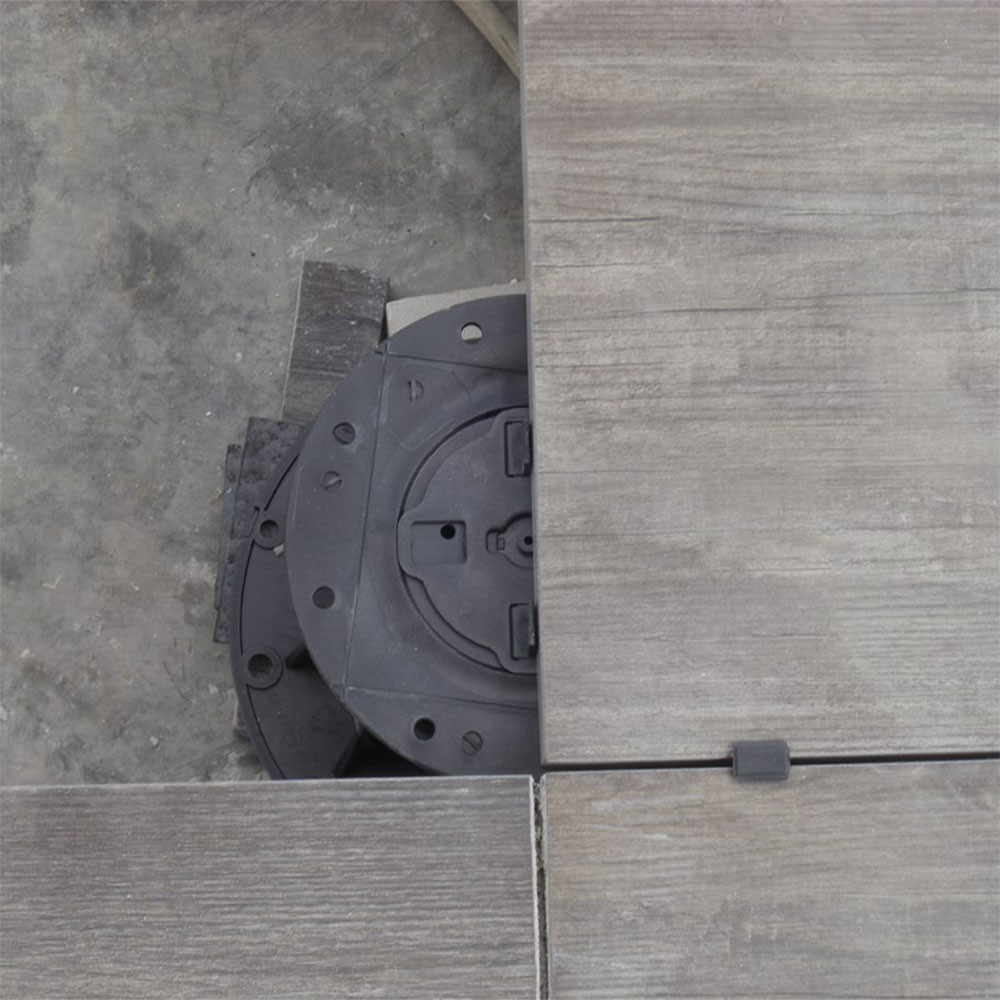

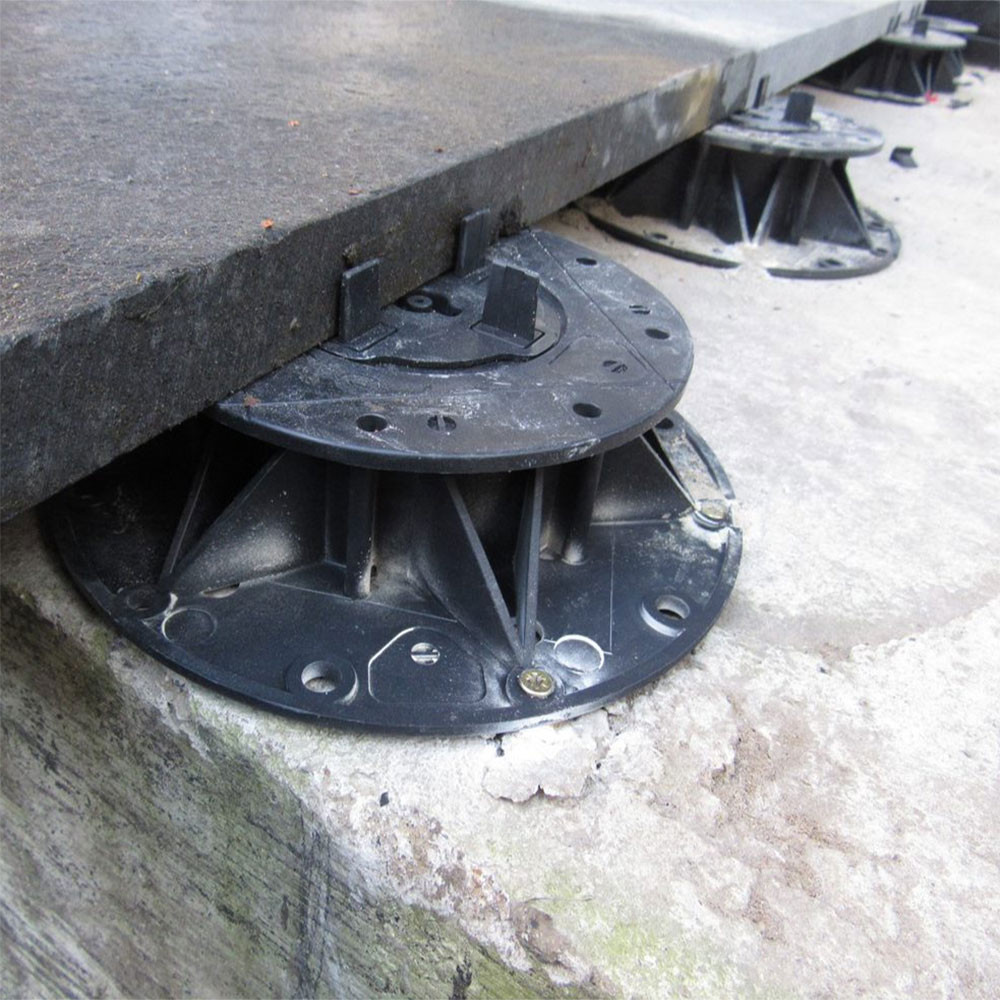

Suitable for use with paving and flat roof tiling on podium decking or terraces, the Megapad can even be reversed. Simply flip the pad and fit the positioning lugs on the baseplate and it will be well equipped for supporting slabs in parapets and walls or around columns.

Features & Benefits: DISCON - Wallbarn 215-320mm Paving Megapad

  • Reversible
  • Huge weight tolerance
  • Rigourously tested at temperatures down to minus 40C
  • No specialist tools needed to install
  • Won't become brittle in cold weather
  • Weight Limit: 1.6 tonnes per each unit
  • Made from durable Polypropylene

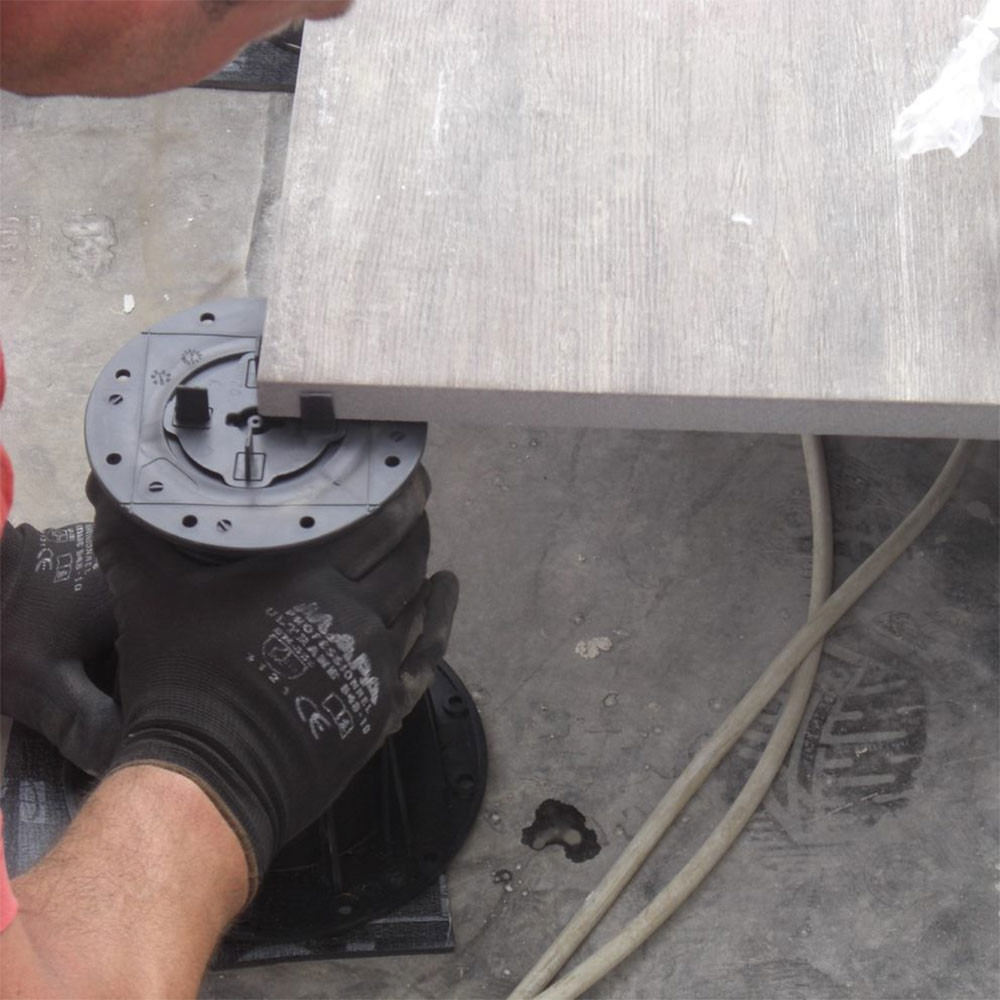

By creating a cavity between the deck and sub-deck, ventilation is improved, and space for electrical wires and cables is provided. Lugs ensure space among paving for precipitation to run into the area below, so no water is left collecting at the top.

Details

Height
215mm - 320mm
Type
Adjustable
Material
Polypropylene
Lug Height
15mm
Base Plate Diameter
200mm
Headpiece Diameter
150mm
