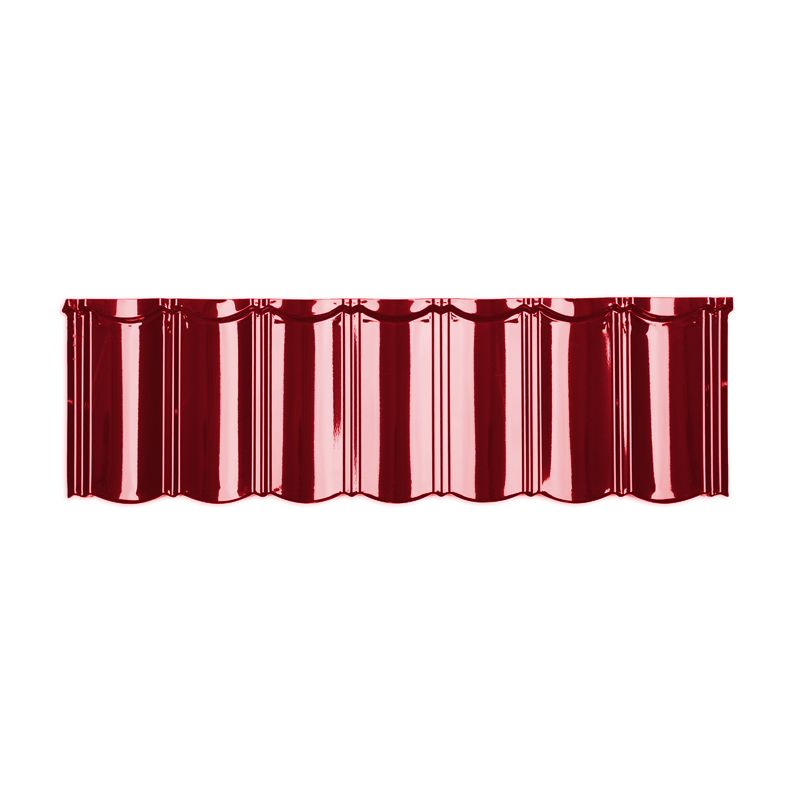

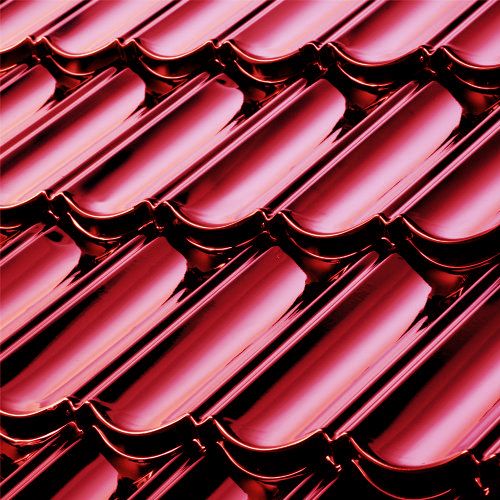

The Decra Elegance Tiles smooth high lustre finish provides a unique opportunity to explore and exploit the pure fluid design integrity of steel. Decra Elegance Tiles are designed to provide an attractive and economic finish for all types of roof down to 10° pitch. The system, which is available in three colours, comprises of coated, zinc aluminium galvanised steel tile panels with a unique four process coating system providing a depth and opacity of lustre unparalleled in the metal roofing industry.
A comprehensive choice of accessories, including eaves, ridge and tile ventilators, completes the system which is totally dry fixed throughout. Each tile has a downturned front edge and an upturned rear edge, and is profiled to provide a strong overlapping and interlocking roof covering. Decra tiles are produced in large format. This enables faster installation with fewer fixings compared to traditional tile or slate roofing.
Once installed Decra tiles provide a durable weathertight and low maintenance roof or vertical covering.
Minimum pitch : 10°.
Maximum pitch : 90°.
Overall size of tile : 1324mm x 410mm.
Cover size of tile : 1260mm x 370mm.
Gauge : 370mm.
Linear cover width : 1260mm.
Coverage : 0.46m2 per tile.
2.145 tiles per m2.
Weight : 2.55kg per tile.
5.47kg per m2.
Fixings : 50mm x 2.5mm coated decra nails.
Fixings per tile : 4 nails.
Battens required : 2.7 linear metres per m2 (plus wastage).
Rafter centres - maximum :
450mm - 38mm x 25mm.
600mm - 50mm x 25mm.
900mm - 50mm x 50mm.
1200mm - 50mm x 50mm.
1500mm - 50mm x 65mm.
There are no product specifications to show.
Question:
screw fixings to be used
Answer:
For the installation of the Decra Elegance High Gloss Metal Lightweight Roofing Tile, you will need to use the appropriate screw fixings to secure the tiles to your roof structure. Unfortunately, the specific type of screw fixings is not mentioned in the product specifications. However, we have a detailed Installation Guide that provides information on how to install the roofing tiles correctly. This guide may include details on the type of screw fixings to use. You can access the Installation Guide here. If you need further assistance or specific information on screw fixings, we recommend contacting our customer service or the manufacturer directly to get the most accurate information.
