Em Dome 600 x 600mm Double Glazed Clear Dome & PVC 300mm Splayed Curb

Product Code:
AAS02C130DA1AA
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£354.23 Incl. VAT
Oops! Please select from the options

Product Description

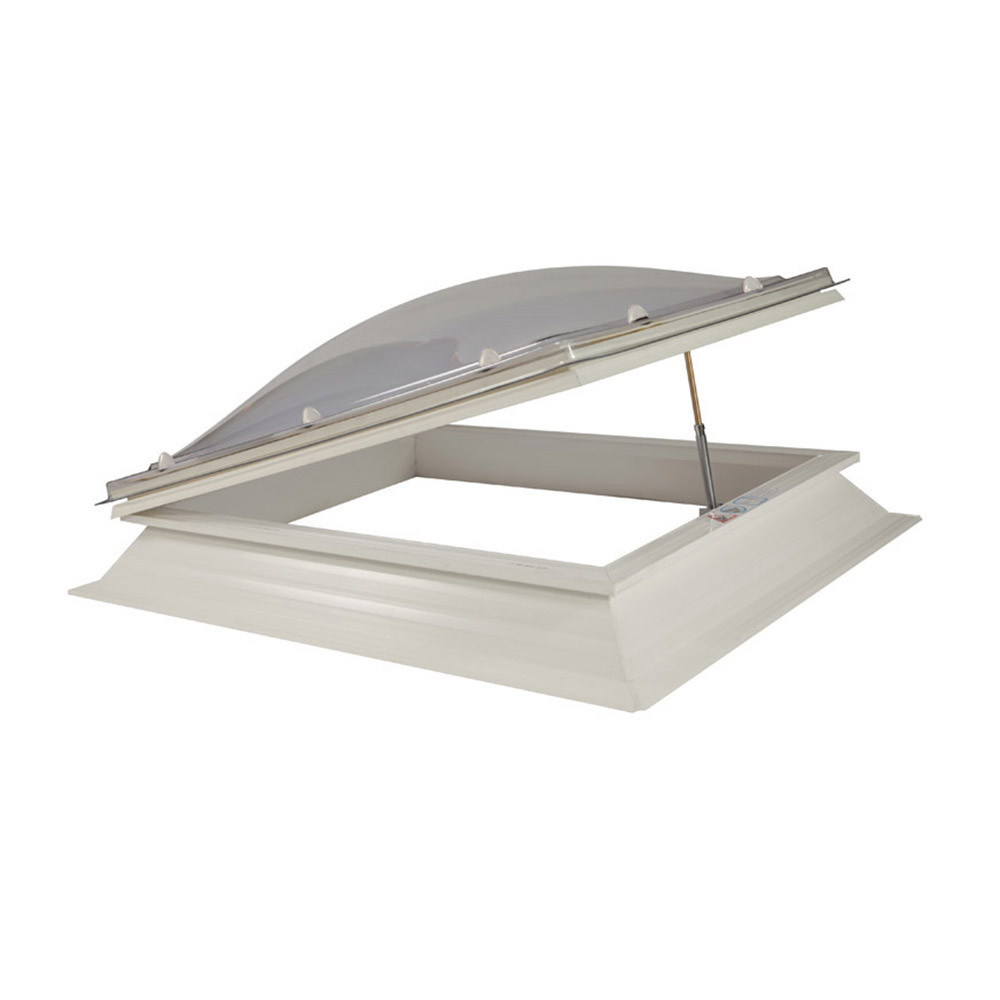

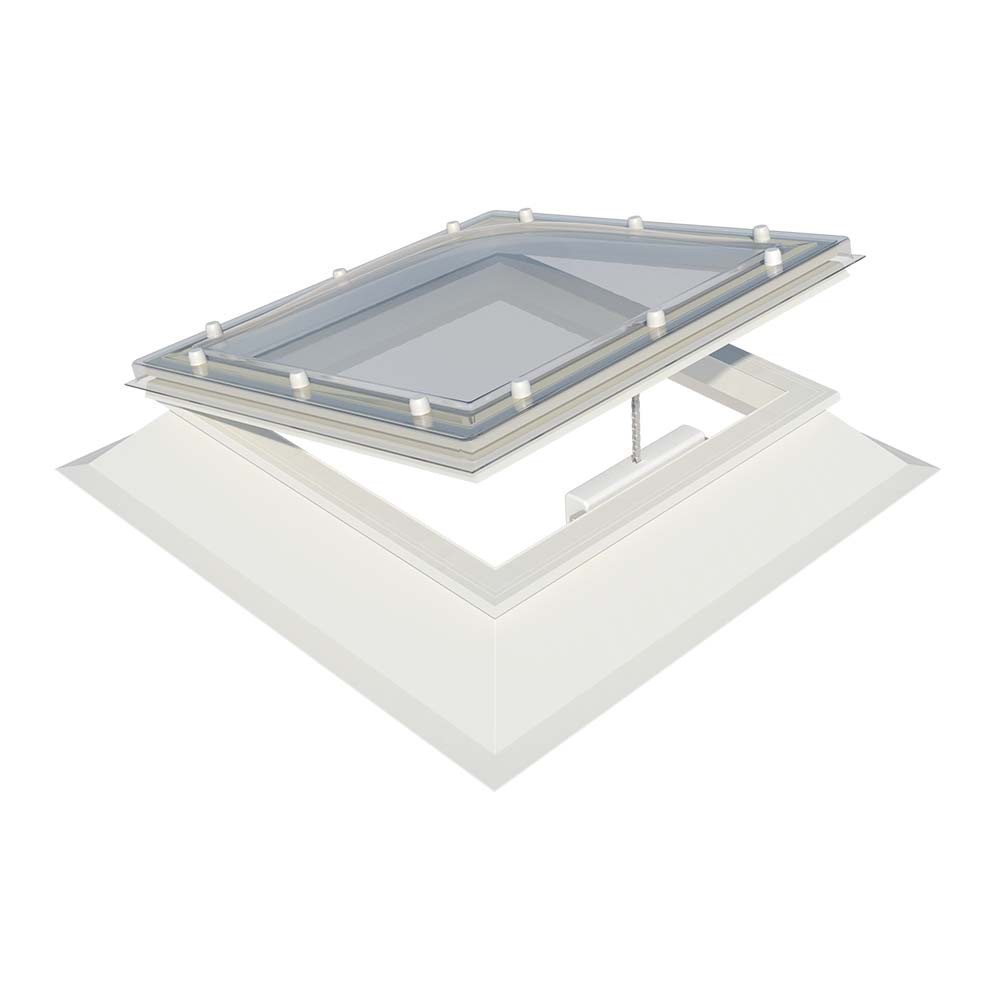

Em Dome 600 x 600mm Double Glazed Clear Dome & PVC 300mm Splayed Curb

Units to incorporate: Vent Axia centrifugal extract fan solo, extract performance 85 cubic metres/h, noise level 42dB.

Description

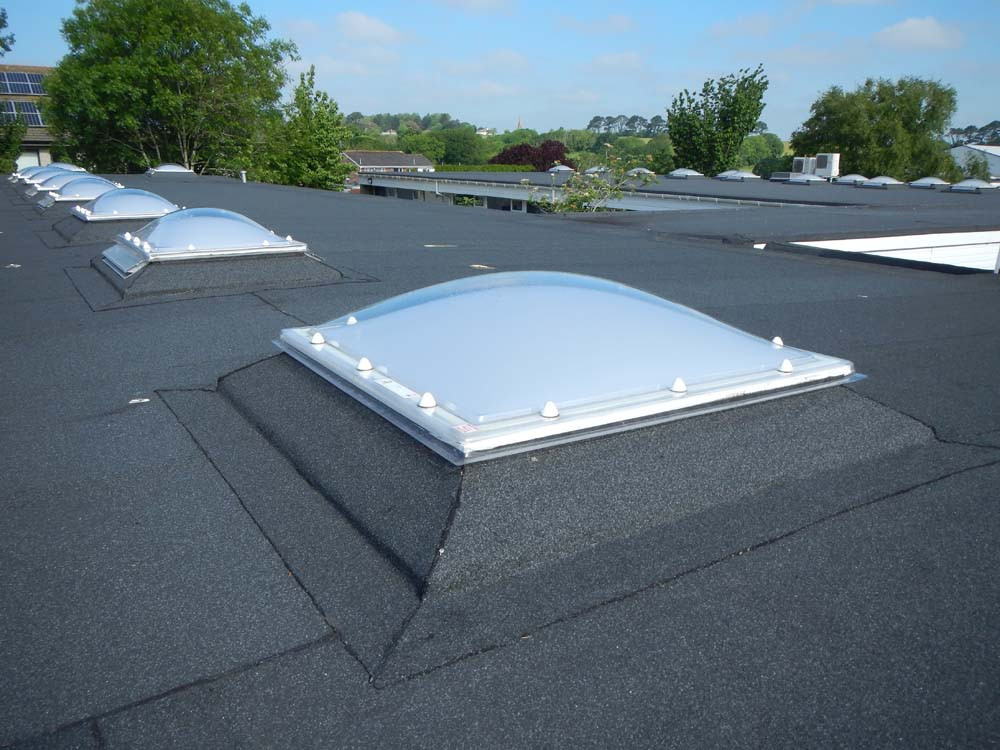

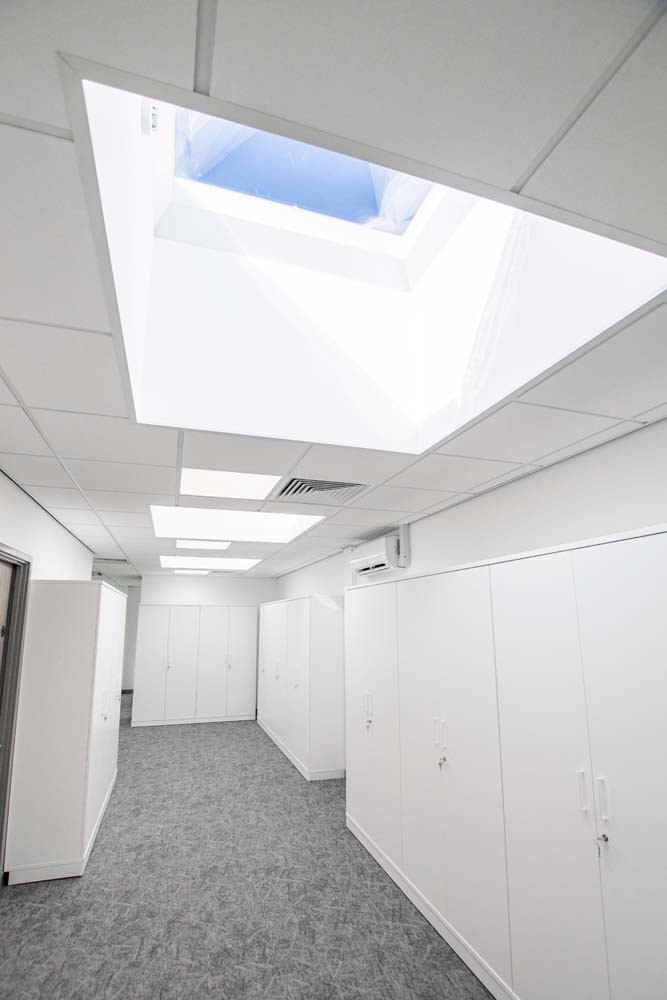

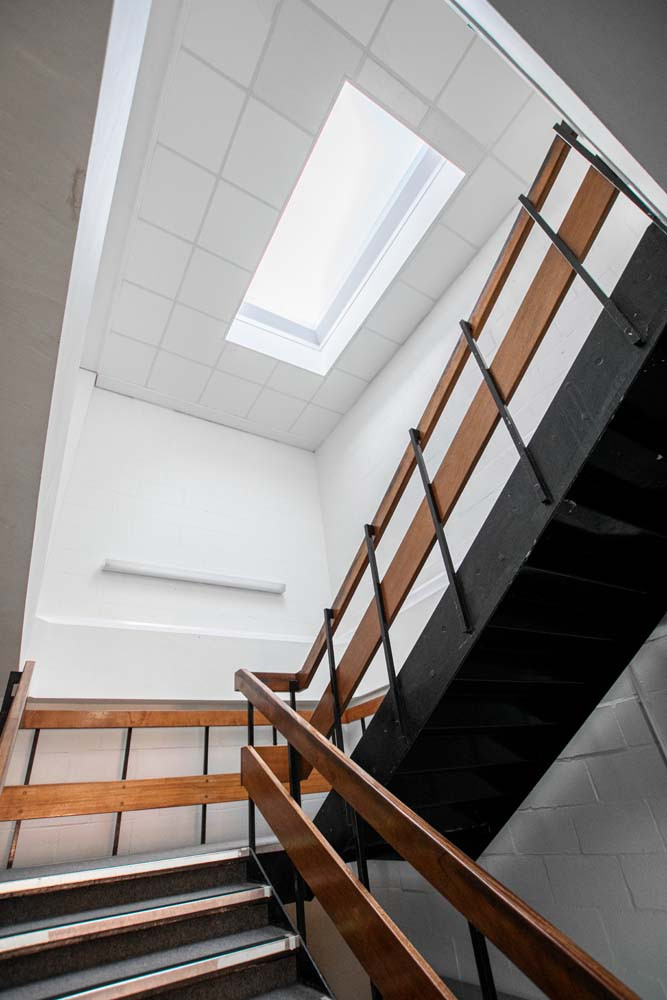

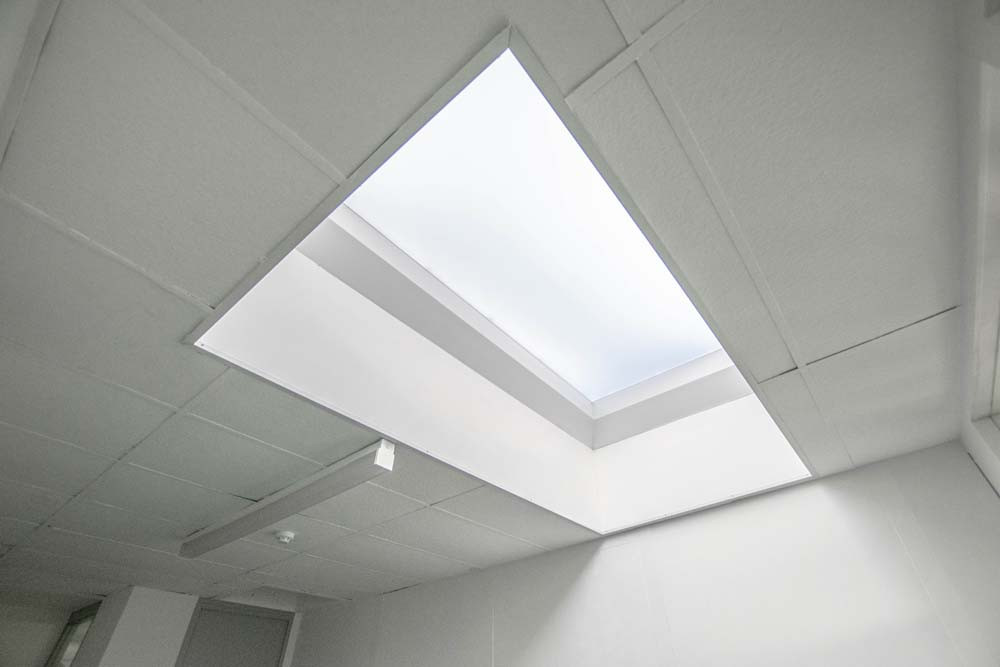

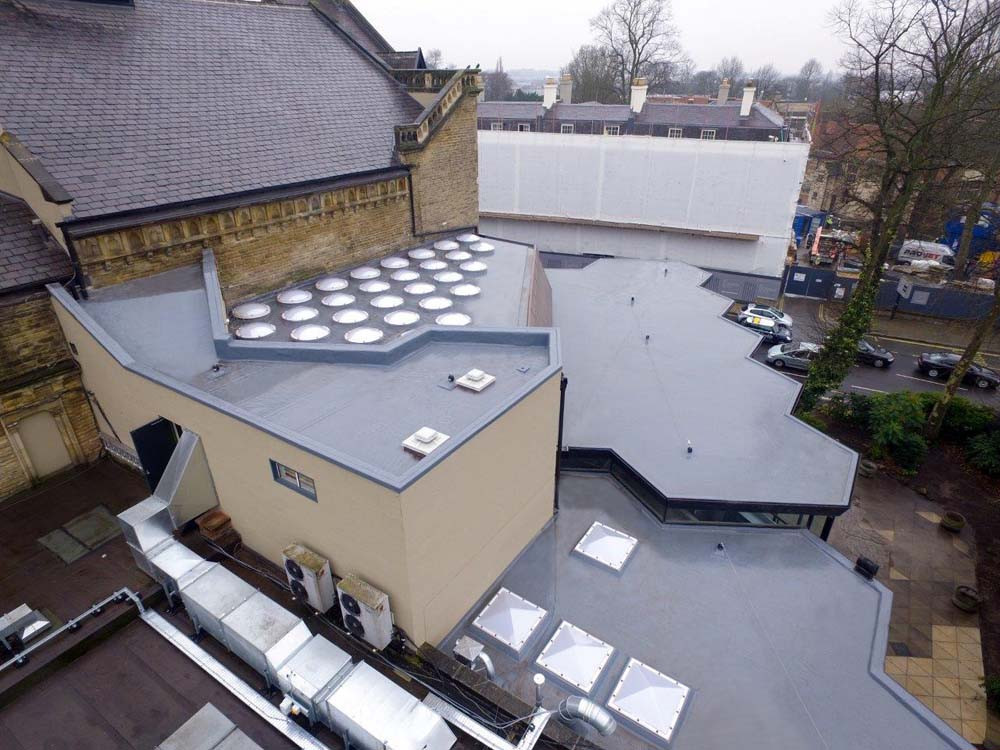

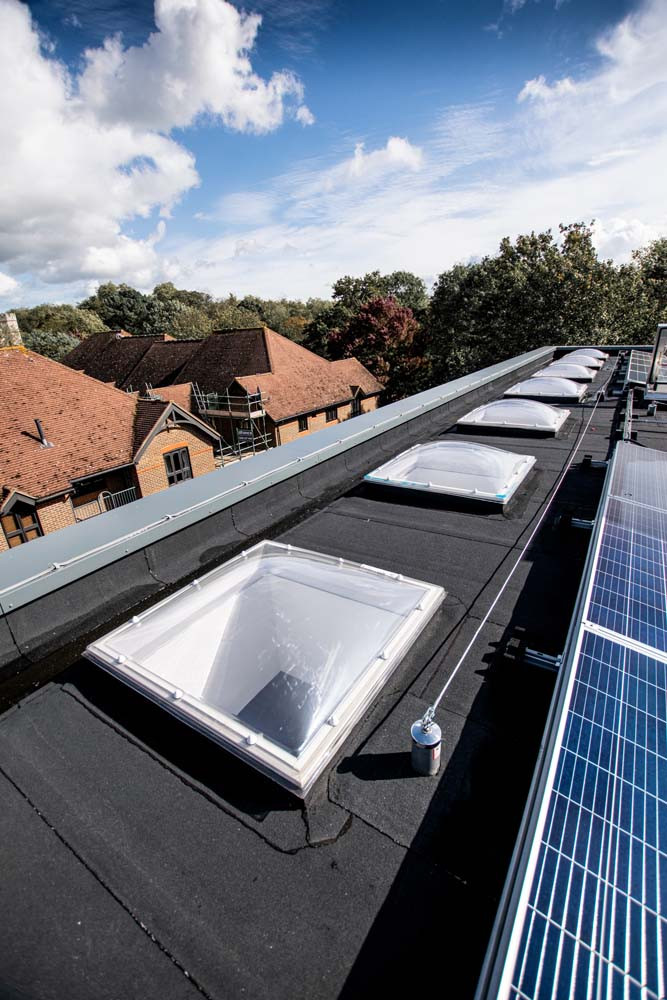

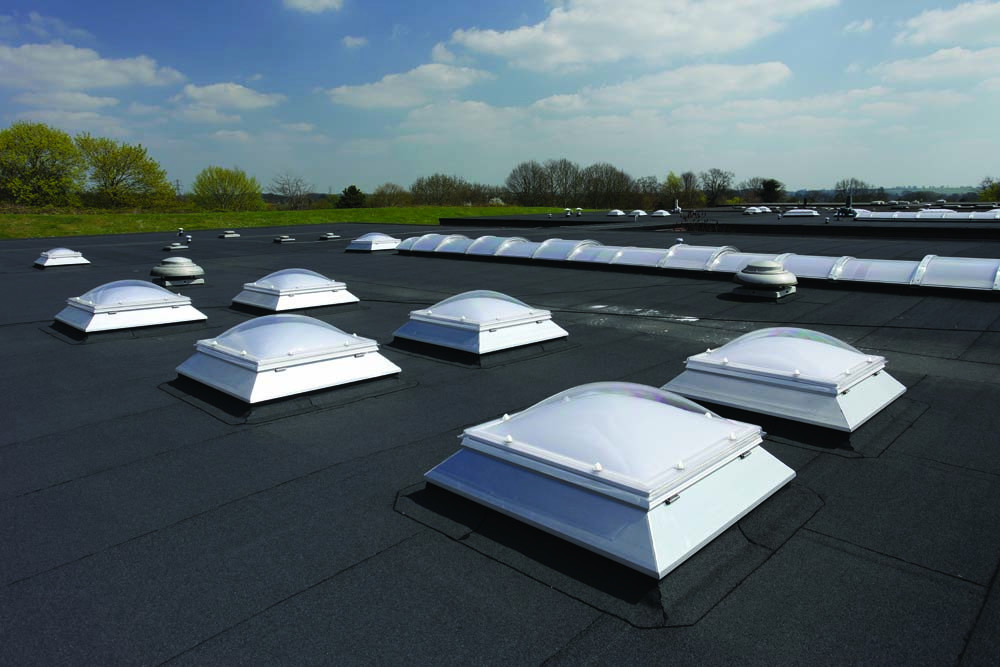

Em-Domes are quality thermoformed rooflights, designed to make optimum use of natural light.
They are offered in a wide range of sizes, shapes and glazing options to meet virtually any specifier and client requirement.

Properties
Double Glazed
Light transmission - 77%.
Solar heat gain factor - 69%.
Sound reduction (db) - 20.
Thermal transmission (w/m2k) - 2.68.
Triple Glazed :
Light transmission - 70%.
Solar heat gain factor - 60%.
Sound reduction (db) - 22.
Thermal transmission (w/m2k) - 1.78.

High security screwbolts
Unique to the Em-Dome are the patented high security screwbolts, supplied factory fitted as standard to all units.
Once installed, the fixing cannot be removed using common tools.
The screwbolt provides a high level of resistance to tampering or forced entry.
The fixing screw or bolt is sleeved within the body of the screwbolt which avoids pressure being exerted on the rooflight glazing as the fixing is tightened.
This virtually eliminates the risk of stress fractures caused by over-tightening.

Thermoformed Glazing
Em-Domes are thermoformed from polycarbonate sheet and are available in single, double and triple skin plus certain sizes available in quad skin or Eco multiwall construction.
Polycarbonate is virtually unbreakable, with an impact strength up to 250 times greater than glass.

Glazing Options
Em-Domes can be supplied in clear, opal diffused, bronze or ‘Heat Reflect’ (which reflects up to 68% of the heat radiation) glazing.
All polycarbonate Em-Domes have a minimum 3 mm thick glazing.
Acrylic Em-Domes have a minimum 3mm outer skin.
Inner skin thickness varies according to the dome size.
