Fakro FTP-VC P2/05 Conservation Laminated Window Tile 45mm - 78 x 98cm

Code:
FTP-V/C P2/05 V KIT/TILE 45
Brand:
Free UK Delivery

This is a double glazed pine centre pivot conservation window with laminated glass and has a uValue of 1.3. Complete with a flashing kit for tiles up to 45mm thick and an XDP insulation set. The Fakro FTP-V/C P2 conservation window is designed for old, historic and trad...Read More

Create a wishlist

"It was only a sample"

Susan Brown

Description

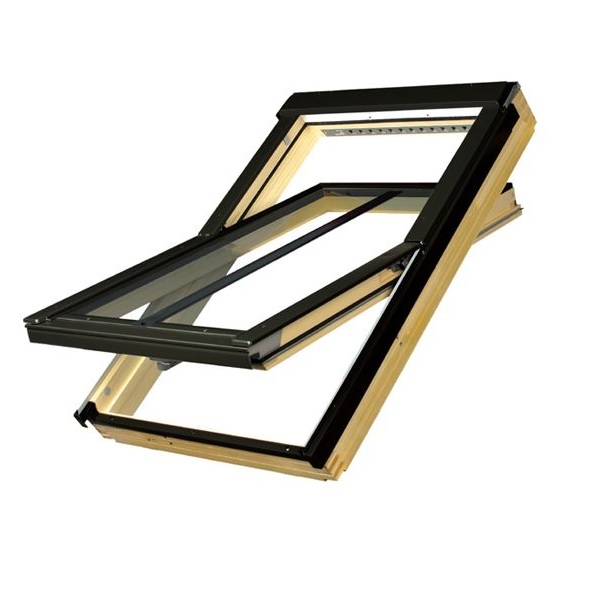

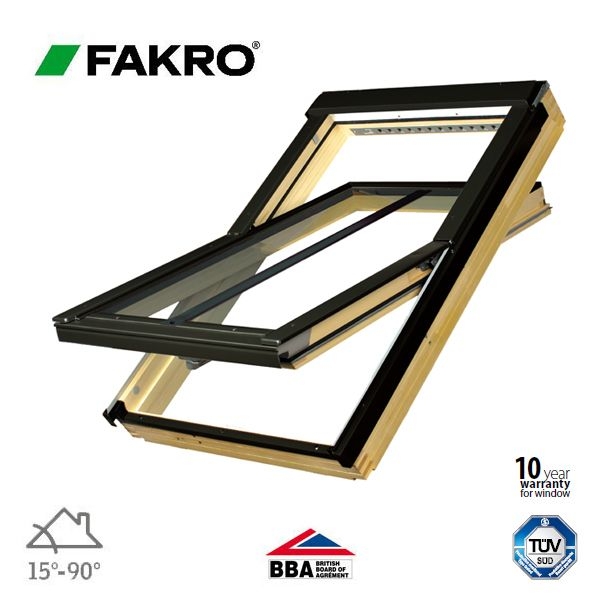

This is a double glazed pine centre pivot conservation window with laminated glass and has a uValue of 1.3. Complete with a flashing kit for tiles up to 45mm thick and an XDP insulation set.

The Fakro FTP-V/C P2 conservation window is designed for old, historic and traditional-looking buildings.

It's characteristic feature is the sash bar down the middle of the window, and black (similar to RAL 9005) metal covering on the window and flashing which is designed to suit traditional buildings.

Using the Fakro sash bar, the window retains the unique historic character of the building from the outside while creating a comfortable and modern interior.

Centre pivot windows
FT centre pivot windows are the most popular type of Fakro roof window. The well-designed centre pivot allows the sash to be opened in a range of positions, thus increasing the amount of fresh air which can be drawn into the room. The sash can also be rotated through 180° and locked, allowing easy and safe cleaning of the outer pane to be carried out. Such pivot windows are operated using a two-part hinge.

As the air inlet is positioned at the top of the frame, Fakro windows have a 6% greater surface area when compared with similar sized windows made by other manufacturers. As a result they maximise the amount of natural light in a room.

Properties
Window uValue : 1.3 W/m2K.
Glazing uValue : 1.1 W/m2K.
Acoustic insulation Rw : 32dB.
Inert gas filled panes : argon.
Air flow : V40P - up to 49m³/h.
Handle : elegant.

Features
Manufactured in pine, vacuum impregnated and coated with acrylic lacquer.
Handle positioned on the lower part of the sash for easy operation, and secured open in two positions.
Suitable for roofs with pitches between 15° and 90° (requires a flashing).
Wide range of accessories.

Dimensions

Size 78cm x 98cm

Details

Finish Pine Operation Manual Glazing P2 Anti Burglary Double Glazing
