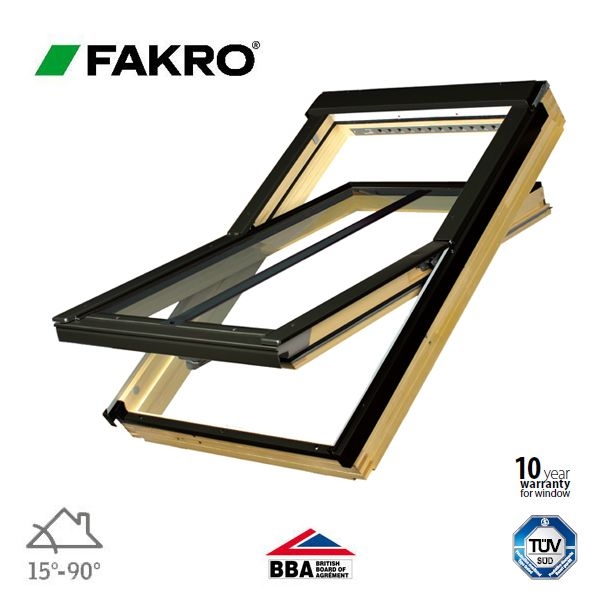

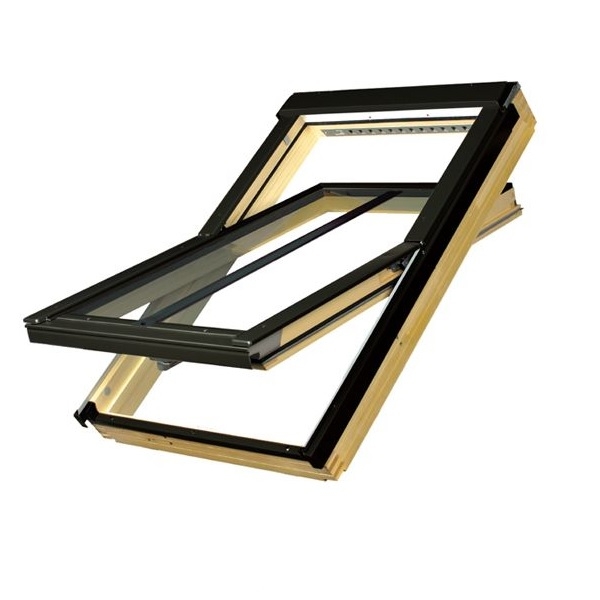

Fakro FTP-VC P2/01 Conservation Window Recessed Plain Tile - 55 x 78cm

Code:
FTP-V/C P2/01 J KIT/PLAIN TILE
Brand:
Free UK Delivery

This is a double glazed pine centre pivot conservation window with laminated glass and has a uValue of 1.3. Complete with a flashing kit for recessed plain tiles up to 15mm thick (3cm deeper than standard depth) and an XDP insulation set. The Fakro FTP-V/C P2 conservation windo...Read More

Create a wishlist

"I bought a rubber flat roofing kit."

Allan Baker

Description

This is a double glazed pine centre pivot conservation window with laminated glass and has a uValue of 1.3. Complete with a flashing kit for recessed plain tiles up to 15mm thick (3cm deeper than standard depth) and an XDP insulation set.

The Fakro FTP-V/C P2 conservation window is designed for old, historic and traditional-looking buildings.

It's characteristic feature is the sash bar down the middle of the window, and black (similar to RAL 9005) metal covering on the window and flashing which is designed to suit traditional buildings.

Using the Fakro sash bar, the window retains the unique historic character of the building from the outside while creating a comfortable and modern interior.

Fakro centre pivot windows

FT centre pivot windows are the most popular type of Fakro roof window. The well-designed centre pivot allows the sash to be opened in a range of positions, thus increasing the amount of fresh air which can be drawn into the room. The sash can also be rotated through 180° and locked, allowing easy and safe cleaning of the outer pane to be carried out. Such pivot windows are operated using a two-part hinge.

As the air inlet is positioned at the top of the frame, Fakro windows have a 6% greater surface area when compared with similar sized windows made by other manufacturers. As a result they maximise the amount of natural light in a room.

Properties

Window uValue: 1.3 W/m2K.
Glazing uValue: 1.1 W/m2K.
Acoustic insulation Rw: 32dB.
Inert gas filled panes: argon.
Air flow: V40P - up to 49m³/h.
Handle: elegant.

Features

  • Manufactured in pine, vacuum impregnated and coated with acrylic lacquer.
  • Handle positioned on the lower part of the sash for easy operation, and secured open in two positions.
  • Suitable for roofs with pitches between 20° and 90° (requires a flashing).
  • Wide range of accessories.

Dimensions

Size 55cm x 78cm Width 1140mm
550mm
660mm
780mm
940mm
980mm

Details

Code FTP Height 780mm
980mm
1180mm
1400mm
1600mm
Type Centre-pivot Finish Pine
Operation Manual Glazing P2 Anti Burglary Double Glazing Pitch 20 - 90 degrees Flashing Type Conservation Flashing
Recessed Flashing
U-Value 1.3
