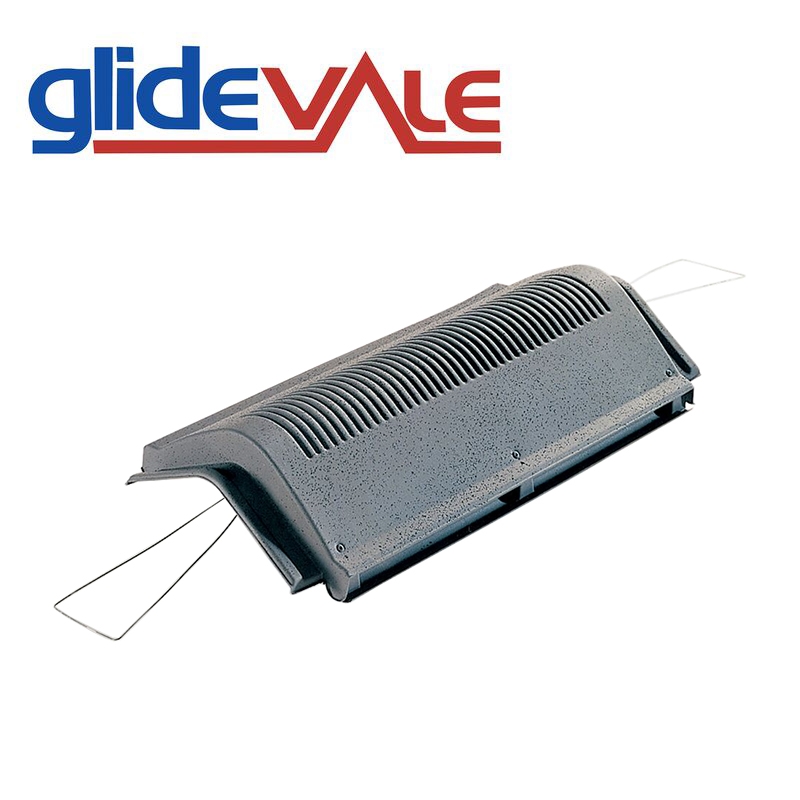

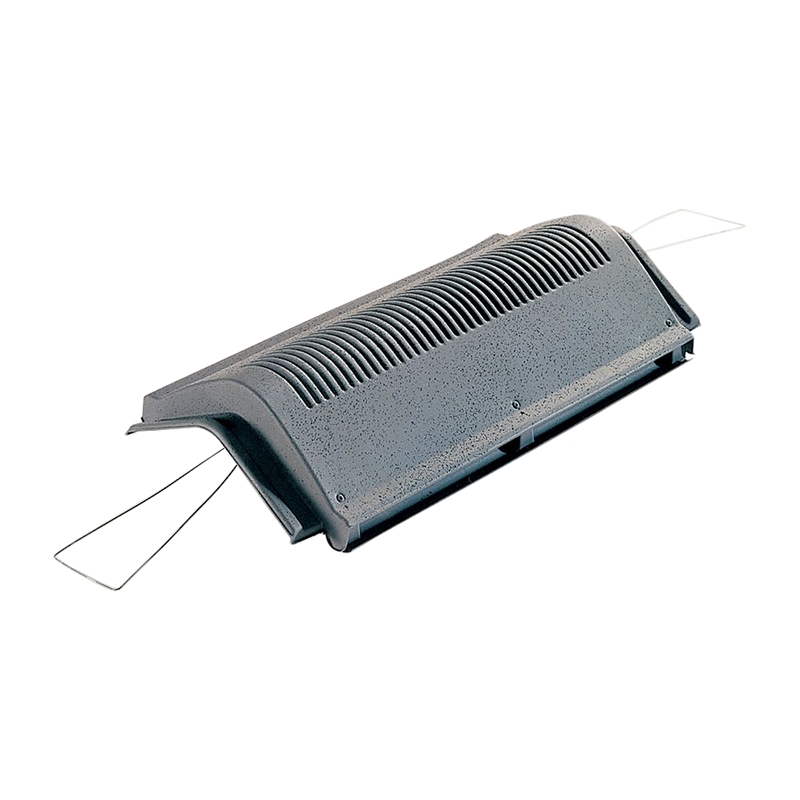

Glidevale G54 in-line Angle Ridge Ventilator - 12,000mm2 Airflow

Code:
G54
Free UK Delivery

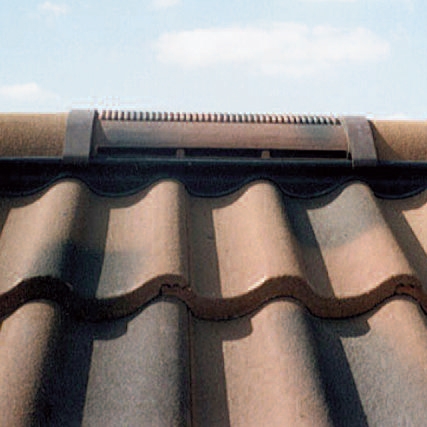

This AA fire-rated Glidevale G54 in-line Angle Ridge Ventilator provides a discreet and visually appealing solution to roof ventilation at the ridge level with a guaranteed actual nett free ventilation area of 12,000mm². It can be spaced at 2.4m to achieve 5000mm² per metre an... Read More

Create a wishlist

"Very quick service"

David Laity

Description

This AA fire-rated Glidevale G54 in-line Angle Ridge Ventilator provides a discreet and visually appealing solution to roof ventilation at the ridge level with a guaranteed actual nett free ventilation area of 12,000mm². It can be spaced at 2.4m to achieve 5000mm² per metre and converted to a soil pipe or mechanical extraction terminal with the use of an SUA adapter.

When used alongside dry ridge systems, this G54 angle ridge vent suits a maximum pitch of 40°.

Features & Benefits: Glidevale G54 in-line Angle Ridge Ventilator - 12,000mm2 Airflow

  • Discreet solution to roof ventilation at the ridge level
  • AA fire-rated
  • Guaranteed actual nett free ventilation area of 12,000mm²
  • 5000mm² per metre when spaced at 2.4m
  • Converts to a soil pipe or mechanical extraction terminal with SUA adapter
  • Maximum pitch of 40° with dry ridge systems

Details

Material
Polypropylene
Profile
Universal
Minimum Pitch
20 Degrees

Questions & Answers

Question:

Hi, is this the Marley Modern Angle

Answer:

Hi Scott

This item will fit any angle ridge as long as the degree is correct Maximum pitch when used with dry ridge systems: G51 - 45°, G53 - 40°, G54 - 40°, G64 - 45°.
