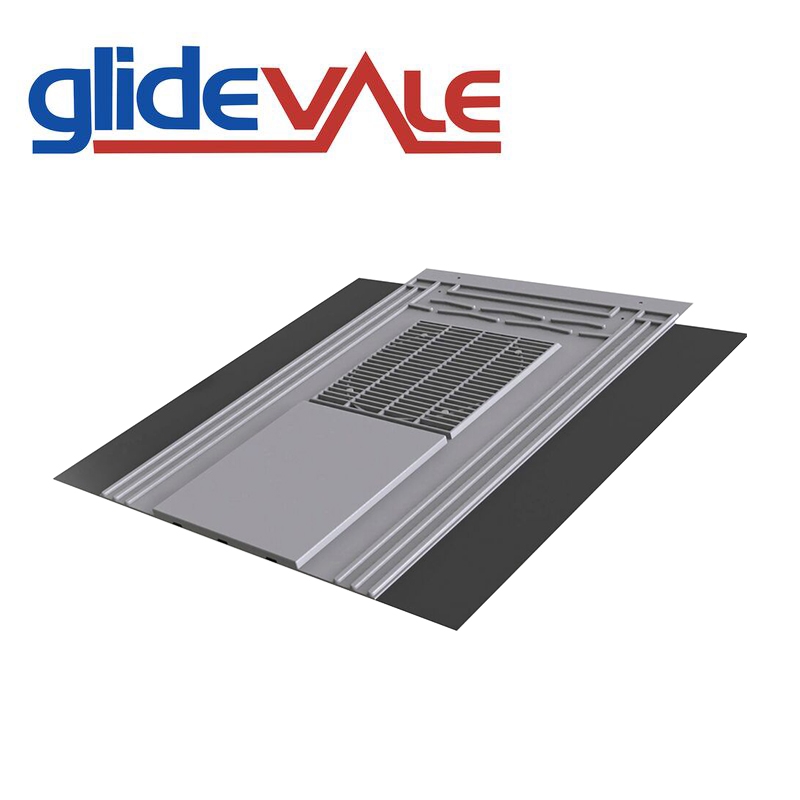

The GV11 Compact In-Line Slate Ventilator is a versatile solution designed for high or low-level roof space ventilation on new or existing roofs. Its adaptability allows it to serve as either a soil vent pipe (SVP) or an extract fan terminal when paired with a pipe adapter. Specifically tailored for a wide range of slate sizes, including smaller natural slates commonly found in regions like Scotland and Ireland, the GV11 is a reliable choice. Additionally, it boasts an AA fire rating and exceptional resistance to wind uplift, ensuring long-lasting performance.

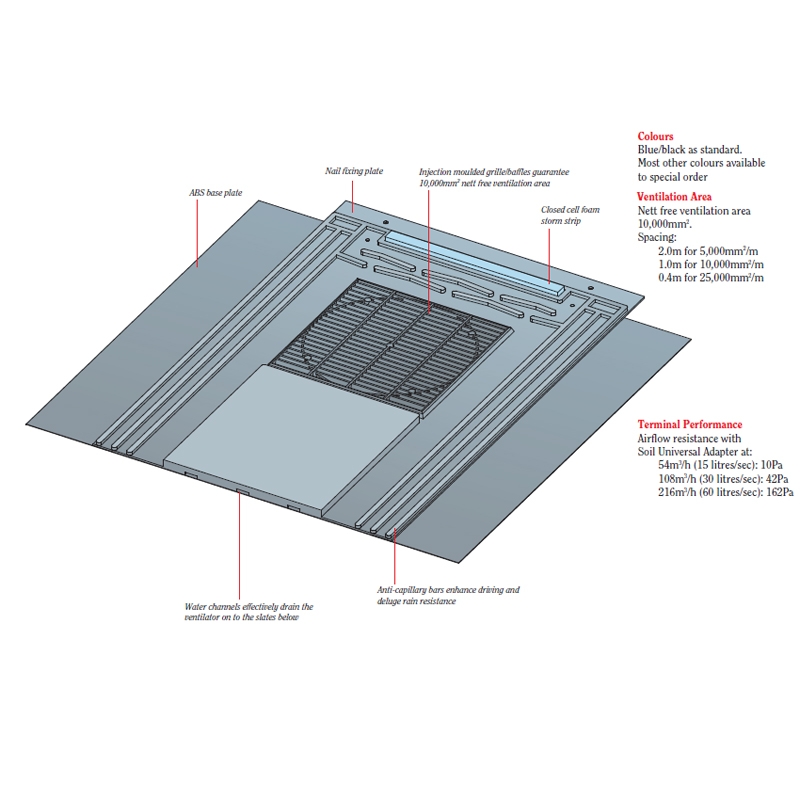

Regarding terminal performance, the GV11 offers excellent airflow resistance with the Soil Universal Adapter, ranging from 54m³ per hour (15 litres/sec) with 10Pa to 216m³ per hour (60 litres/sec) with 162Pa. The ventilation area provides a nett-free ventilation area of 10,000mm². It accommodates various ventilation needs depending on the spacing, with options like 2.0m for 5,000mm² per metre, 1.0m for 10,000mm² per metre, and 0.4m for 25,000mm² per metre.
Question:
What are the dimensions of this vent
Answer:
Hi Janice
The vent itself is a 600 x 300 but it can be used with any slate size due to the design
