Icopal Edge Restraint for Extensive Green Roofs - 2.4m x 100mm x 75mm

Code:
20000453
Brand:
Free UK Delivery

There is a need to retain Icopal Extensive Green Roof System growing medium in situations where there is no upstand to fulfil this function. The Icopal Edge Restraint provides an attractive, contemporary alternative to conventional kerb edges. Icopal Edge Restraints are manuf...Read More

Create a wishlist

"My Fakro Fire door was delivered a…"

Chris McNaughton

Description

There is a need to retain Icopal Extensive Green Roof System growing medium in situations where there is no upstand to fulfil this function. The Icopal Edge Restraint provides an attractive, contemporary alternative to conventional kerb edges.

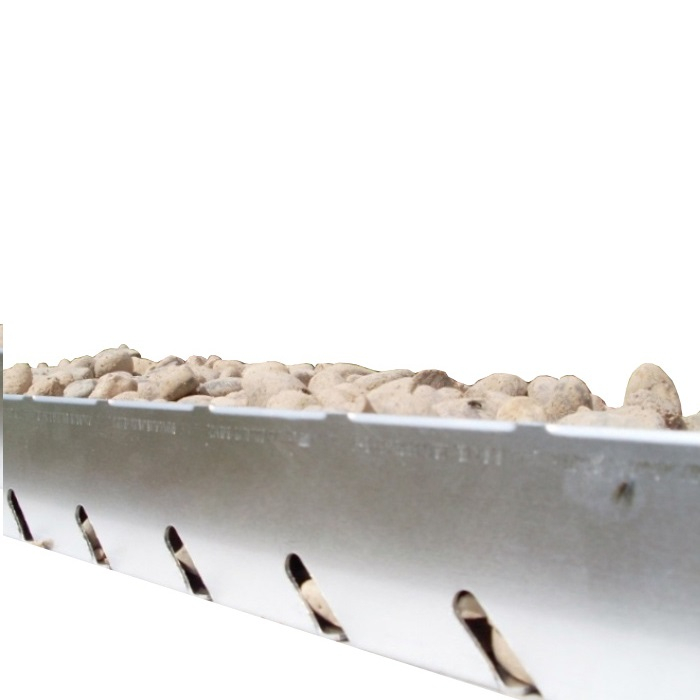

Icopal Edge Restraints are manufactured from mid sheen, 2mm thickness aluminium and incorporate upright slits to provide a drainage path from the growing medium and drainage aggregate into gutters and outlets for any excess water. The standard unit has an upstand height of 100mm, with a 90° angled base of 75mm.

Properties

Length: 2.4m.
Height: 100mm.
90° angled base: 75mm.
Material: 2mm aluminium.

Application

copal Edge Restraint is primarily used within Icopal Extensive Systems. It is used to retain the green roof substrate where there is no kerb to fulfil this function. The Icopal Edge Restraint is also used at roof edges. On sloped roofs it is often used in association with Icopal Intermediate Restraints. All open verge edges and slopes over 5° require the Edge Restraint to be mechanically fastened.

Installation

Handle with care to avoid any damage.

The Icopal Edge Restraint is laid directly on top of the waterproof membrane, and restrained by using flashing strips made from the same waterproof membrane, or by ballast. When used at open roof verges or eaves, or at the bottom of the roof on slopes over 5°, the unit must be mechanically fastened to the roof structure.

Storage

Icopal Edge Restraints are delivered to site on pallets.

The product should be stored horizontally on a clean, flat surface, be covered and protected from mechanical damage.

Dimensions

Length 2400mm Width 0.1m

Details

Type Edging Colour Aluminium Material Aluminium

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Is this product available? I can’t seem to add to basket. I need 6 with joining pieces. Thanks

Answer:

I have sent you a quote
