DISCON - Klober Trapac Tile Safety Hook

Name: DISCON - Klober Trapac Tile Safety Hook
Brand: KLOBER
SKU: PARENT-KLOBER-KS900

Code:

PARENT-KLOBER-KS900

Brand:

KLOBER

This item is out of stock and not available to purchase.

View alternative products

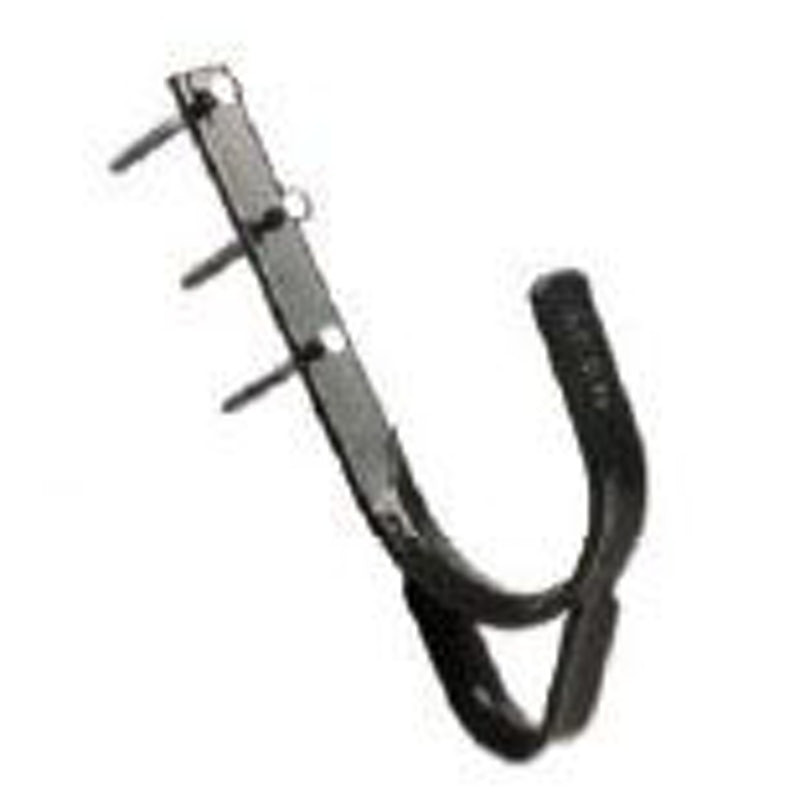

The Trapac Tile Safety Hook from Klober is available in terracotta and anthracite. The hooks are used to fix loads such as a roofer's ladder, allowing you to work with confidence. Three different versions are available to suit slates, plain or profiled concrete and clay tiles.... Read More

View full product details

View questions about this product

Create a wishlist

Robert

Description

The hook also features an eyelet that can be used to hang safety equipment on.

Features & Benefits: DISCON - Klober Trapac Tile Safety Hook

Eay to install
Corrosion-resistant material
Galvanised and powder coated
Eyelet to hang safety equipment off of.

You should fix the Safety Hooks in the centre of the rafter using the nails supplied. The minimum rafter cross-section should be 50mm x 80mm, and nails must be at least 25mm away from the rafter edge. It is recommended that when fixing the safety hooks into counter battens or boarding, holes should be pre-drilled before nailing.

Installation

The Safety Hooks should be fixed in the centre of the rafter using the nails supplied. Minimum rafter cross section should be 50x80mm. The nails must be at least 25mm away from the rafter edge. If the safety hooks are not fixed directly to the rafters, but fixed through counter battens or boarding, care must be taken to avoid the timber splitting on the account of its insufficient thickness. We recommend that when fixing the safety hooks into counter battens or boarding, holes should be pre-drilled prior to nailing. To conform to Euro Code 5-1-1, fixings must be driven in to a minimum depth of 36mm into the load-bearing roof construction (rafters). After any dynamic loading of a safety hook (occurrence of a safety critical event) the hook must be replaced, along with all the relevant fittings. Klober's installation instructions should be followed closely when fitting this product.

Product Specification

Dimensions: 30mm x 6mm
Material: Galvanised Steel
Available Colours: Terracotta and Anthracite

Standards & Certification

European Standard: S 235 J2 G3C by European Standard DIN EN 10025

Please note:

Klober's installation instructions should always be adhered to when fitting this product.
If the safety hooks are not fixed directly to the rafters but fixed through counter battens or boarding, you must take care to avoid the timber splitting on account of its insufficient thickness.
After any dynamic loading of a safety hook (occurrence of a safety critical event), the hook must be replaced, along with all the relevant fittings.

Specification

Details

Type: Safety Hook

Colour: Anthracite
Terracotta

Material: Galvanised Steel

DISCON - Klober Trapac Tile Safety Hook

This product has been discontinued.
