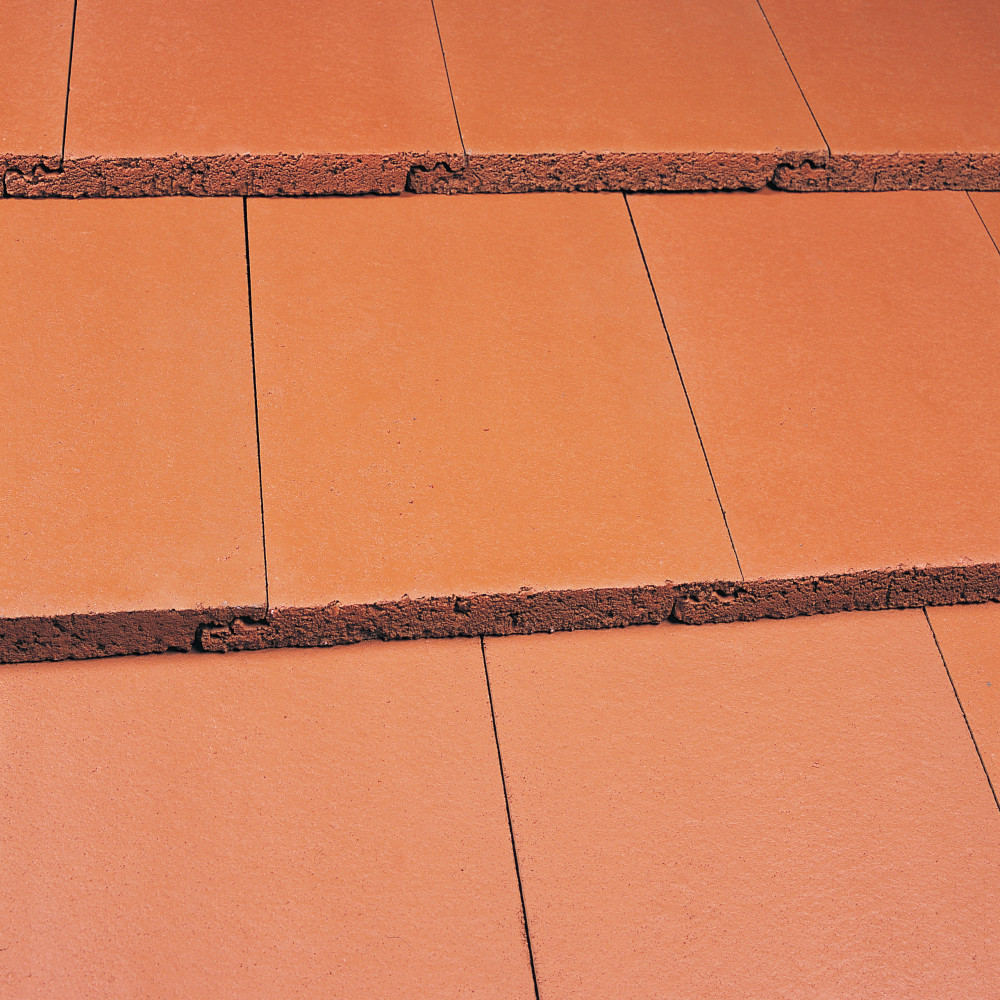

Marley Modern Interlocking Concrete Roof Tile - Mosborough Red

Product Code:
Est. Delivery: 60-65 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£1.06 Incl. VAT
£0.88 Ex. VAT
Oops! Please select from the options

Product Description

The Modern concrete interlocking roof tile from Marley has a smooth, single lap design and slate like appearance that is enhanced by the necessary broken bond laying pattern. It’s excellent covering capacity makes the Modern concrete tile an affordable roofing solution that is a great alternative to slate.

Why Concrete Interlocking Tiles?

The concrete interlocking tile is a modern alternative to the standard plain tile. It is greatly admired for its smooth appearance. Additionally, concrete interlocking tiles have a lower environmental impact, are easier to install and are much more budget friendly – all the while being sturdier with the use of concrete material!

Product Specification

Colour: Mosborough Red

Minimum Pitch: 17.5° Smooth / 25° Granular

Maximum Pitch: 90°

Size: 420mm x 330mm

Tile Thickness: 30mm (nominal)

Covering Capacity (Net, Roof)
9.9 tiles/m2 at 75mm headlap
10.7 tiles/m2 at 100mm headlap

Weight of tiling per m² (approx, roof):
50kg/m2 (0.49 kN/m2) at 75mm headlap
54kg/m2 (0.53kN/m2) at 100mm headlap

Tile Nails: 50mm x 3.35mm

Minimum Headlap (roof): 75mm

Maximum gauge (roof): 345mm

Battens required (net, roof):
2.9 lin.m/m2 at 75mm headlap
3.1 lin.m/m2 at 100mm headlap

Batten size recommended:
38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)

Product Documents


Width 330 Length 420 Thickness 5


Size 330mm x 420mm Type Tile Finish Smooth Colour Mosborough Red Material Concrete
Profile Modern Minimum Pitch 17.5 Degrees Maximum Pitch 90 Degrees
