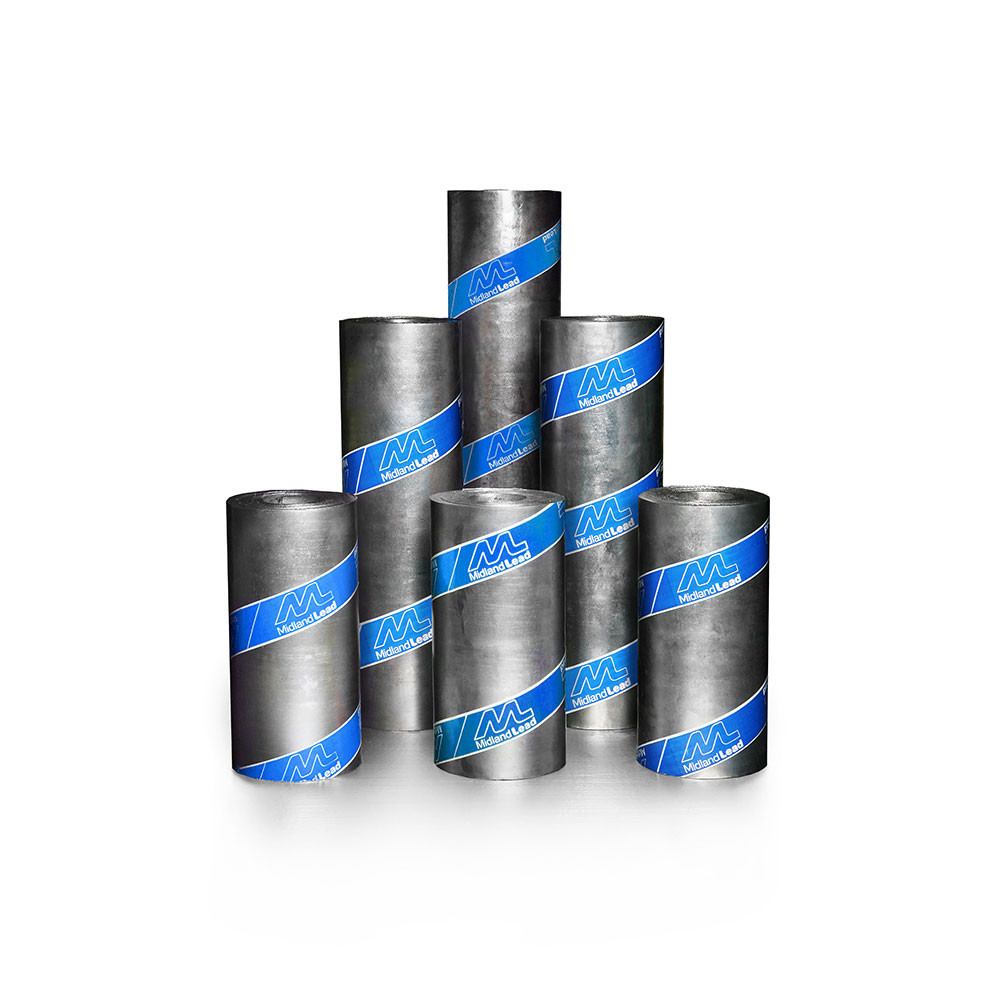

Midland Lead Code 4 Cast Lead Roof Flashing - 600mm x 6000mm

Product Code:
Est. Delivery: TBC
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£176.40 Incl. VAT
Oops! Please select from the options


Lead is malleable but durable and it typically lasts over 100 years. Lead is a sustainable and environmentally friendly. It is 100% recyclable and is also cost-effective, practical and stylish, easy to use and comes in a range of sheet thickness codes to suit your project’s needs.

What is Machine Cast Lead?

Machine cast lead is produced by dipping a rotating water cooled drum into a bath of molten lead. The lead sheet is formed on the immersed section of the drum and peels off at the top. It is then wound onto spools, before being cut into lead sheet rolls.

Both milled and cast lead are made according to the same analysis, codes, tolerances and permitted sizes. What’s more, cast lead is outperforming milled lead when it comes to strength and creep resistance.

High quality cast lead sheet manufactured by Midland Lead from 100% recycled raw materials and certified by the British Board of Agrement (BBA) – Certificate No: 86/1764.

Please note to avoid thermal expansion & contraction issues with lead flashing, individual flashing pieces must not exceed 1.5 metres in length. Due to temperature fluctuations, regular spaced expansions joints must be used.

When flashing flat roofs up to a 10 degree pitch it is important to note the maximum spacing of joints with the fall must not exceed 500mm and the maximum distance between the drips must not exceed 1.5m with Code 4 cast lead.


Lead Code: Code 4

Lead Type: Cast Lead

Width: 600mm

Length: 6000mm

Thickness: 1.80mm

Roll weight: 73.5kg

Nominal weight: 20.4kg/m2

Application: Vertical cladding, soakers, hip & ridge flashing, pitched valley gutters, bay tops & canopies, apron & cover flashings and dormers.


Length 6000mm Thickness 1.80mm Width 600mm


Lead Code Code 4 Type Lead Flashing
