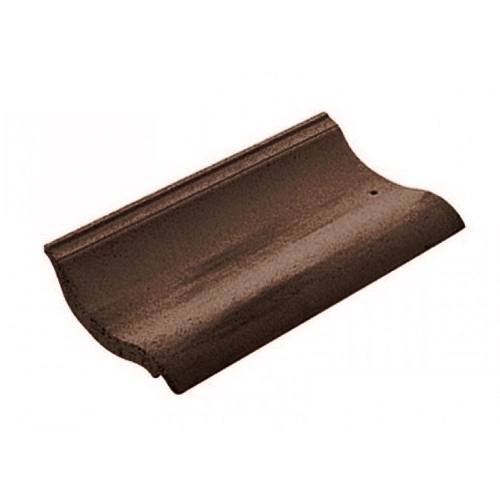

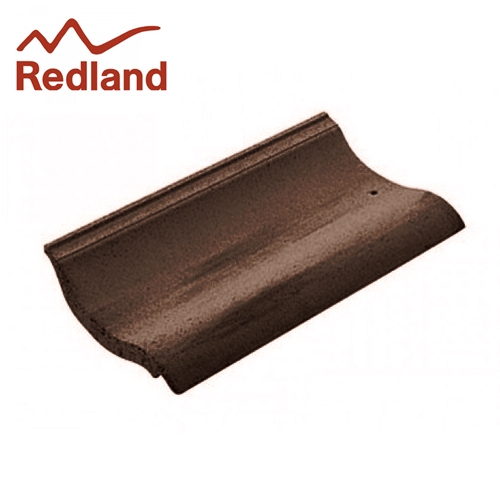

The classic single pantile shape in a modern interlocking concrete format that guarantees robust, weathertight performance in all conditions. Fenland Pantile is a natural successor to the distinctive single clay pantiles that characterise so much of the South East and East Ang...Read More
The classic single pantile shape in a modern interlocking concrete format that guarantees robust, weathertight performance in all conditions. Fenland Pantile is a natural successor to the distinctive single clay pantiles that characterise so much of the South East and East Anglia and is available in a range of subtle through coloured and pigmented acrylic finishes.
Now available is a black colour to add to Redland’s range of Fenland Pantiles. Launched in response to demand from housebuilders, Redland anticipates that the main market for the product will be in the East Anglian region.
The intense black colour is achieved by applying a pigmented acrylic to the surface and leading edge of the concrete Pantile. Particular attention has been paid to ensuring that this surface is not damaged in transit or storage, so each of the new tiles has wax protecting pads on the underside to minimise damage or scuffing to the surface when the products are packaged.

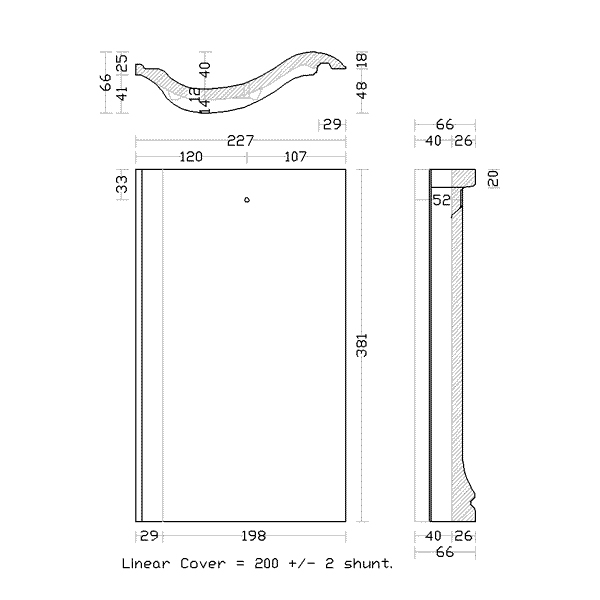

Size : 381mm x 227mm.
Minimum pitch : 17.5° at 100mm headlap.
22.5° at 75mm headlap.
Maximum pitch : 90° - subject to fixing specification.
Maximum headlap : 125mm.
Minimum gauge : 256mm.
Maximum gauge : 281mm below 22.5°.
306mm at 22.5° and over.
Tile thickness : 24mm.
Coverage : 17.8 tiles/m2 at 281mm gauge.
16.3 tiles/m2 at 306mm gauge.
Weight : 2.91 tonnes/1000.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 3.56m/m2 at 281mm gauge.
3.26m/m2 at 306mm gauge.
Nail size : 45mm x 3mm.
Tile finish : sanded.
Tile profile : pantile.
BBA certified.
Fenland Pantiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.
