A flat concrete slate which can be laid at pitches as low as 17.5°. Our most economical concrete slate with interlocking edges for simple construction. Properties Size : 418mm x 334mm. Minimum pitch : 17.5° - 100mm headlap. 22.5° - 75mm headlap. Maximum pi... Read More
A flat concrete slate which can be laid at pitches as low as 17.5°. Our most economical concrete slate with interlocking edges for simple construction.
Properties

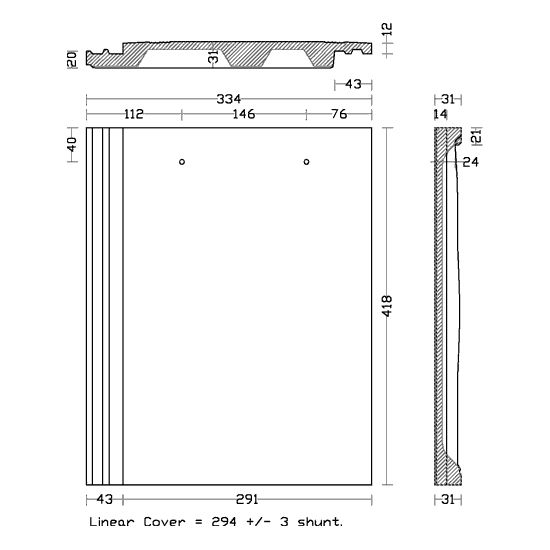

Size : 418mm x 334mm.
Minimum pitch : 17.5° - 100mm headlap.
22.5° - 75mm headlap.
Maximum pitch : 90°.
Coverage : 10.7 slates/m2 at 318mm guage.
9.9 slates/m2 at 343mm guage.
Weight : 5.1 tonnes/1000.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 3.15m/m2 at 318mm guage.
2.92m/m2 at 343mm guage.
Nails required : 50mm x 3.35mm.
Description
An economical concrete slate, Mini Stonewold has interlocking edges ensuring quick and simple construction, reducing the laid cost of the roof.
Mini Stonewold Slates conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.
