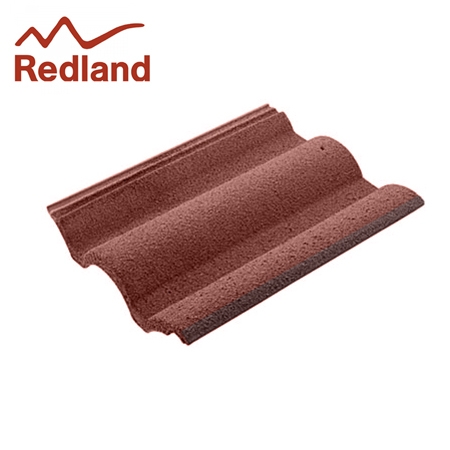

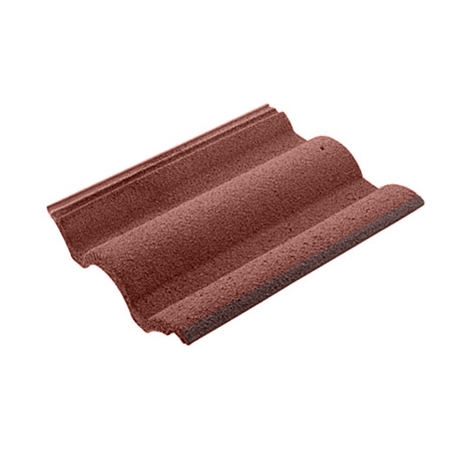

Redland Regent Concrete Roof Tile Pallet of 252 - Rustic Red

Code:
10001729
Brand:
Free UK Delivery

Regent tiles are characterised by their high, bold roll profile, creating a striking and unique effect on the roof. They are available in a wide range of colours and three surface treatments; smooth, granular, and clear acrylic coated to suit all roof types. In addition, Re...Read More

Create a wishlist

"Good website"

phil

Description

Regent tiles are characterised by their high, bold roll profile, creating a striking and unique effect on the roof. They are available in a wide range of colours and three surface treatments; smooth, granular, and clear acrylic coated to suit all roof types.

In addition, Regent can be laid at pitches as low as 12.5°, making them ideal for extensions and lean-to-roofs where the rafters have to fit below existing window cills.

Properties

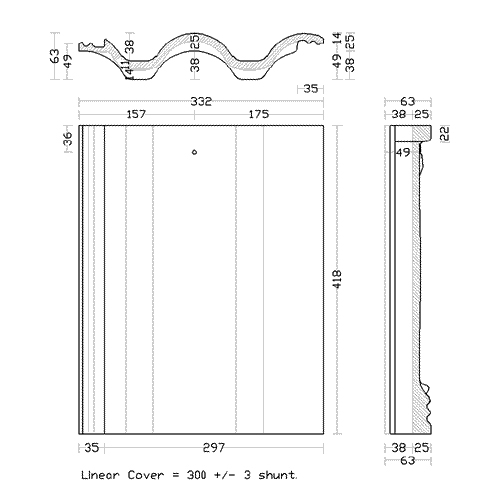

Size : 418mm x 332mm.
Minimum pitch :
Through coloured.
12.5° at 100mm headlap.
17.5° at 75mm headlap.
Granular.
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch : 90° - subject to fixing specification.
Maximum headlap : 125mm.
Minimum gauge : 293mm.
Maximum gauge : 318mm below 17.5°.
343mm at 17.5° and over.
Tile thickness : 25mm.
Coverage : 10.5 tiles/m2 at 318mm gauge.
9.7 tiles/m2 at 343mm gauge.
Weight : 4.89 tonnes/1000.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 3.15m/m2 at 318mm gauge.
2.92m/m2 at 343mm gauge.
Nail size : 75mm x 3.75mm.
Tile finish : smooth - through coloured & acrylic coated.
Tile profile : profiled.

BBA certified.
Regent Tiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.

Dimensions

Size 418mm x 332mm

Details

Type Tile Finish Smooth Colour Rustic Red Material Concrete
Profile Regent Minimum Pitch 12.5 Degrees
