A neat, low profile tile designed to blend unobtrusively into its surroundings and givin a more contemporary feel to a roof with a square edged profile. As with all interlocking concrete tiles, Renown is quick and easy to lay but also provides exceptional wind and driving rai...Read More
A neat, low profile tile designed to blend unobtrusively into its surroundings and givin a more contemporary feel to a roof with a square edged profile.
As with all interlocking concrete tiles, Renown is quick and easy to lay but also provides exceptional wind and driving rain performance.

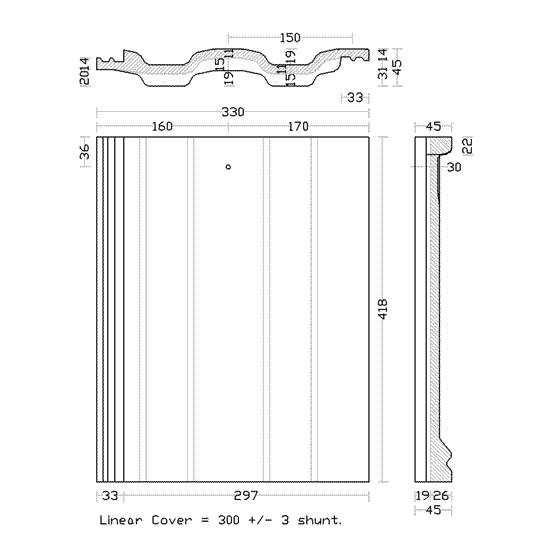

Size : 418mm x 330mm.
Minimum pitch :
Through coloured.
17.5° at 100mm headlap.
22.5° at 75mm headlap.
Granular.
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch : 90° - subject to fixing specification.
Maximum headlap : 125mm.
Minimum gauge : 293mm.
Maximum gauge : 318mm below 22.5°.
343mm at 22.5° and over.
Tile thickness : 26mm.
Coverage : 10.5 tiles/m2 at 318mm gauge.
9.7 tiles/m2 at 343mm gauge.
Weight : 4.58 tonnes/1000.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 3.15m/m2 at 318mm gauge.
2.92m/m2 at 343mm gauge.
Nail size : 50mm x 3mm.
Tile finish : granular.
Tile profile : profiled.
BBA certified.
Renown Tiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.
