VELUX GGL CK04 SD5P2 Conservation Window for 15mm Tiles - 55cm x 98cm

Product Code:
GGL CK04 SD5P2
Brand:
Est. Delivery: 2-3 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Product Description

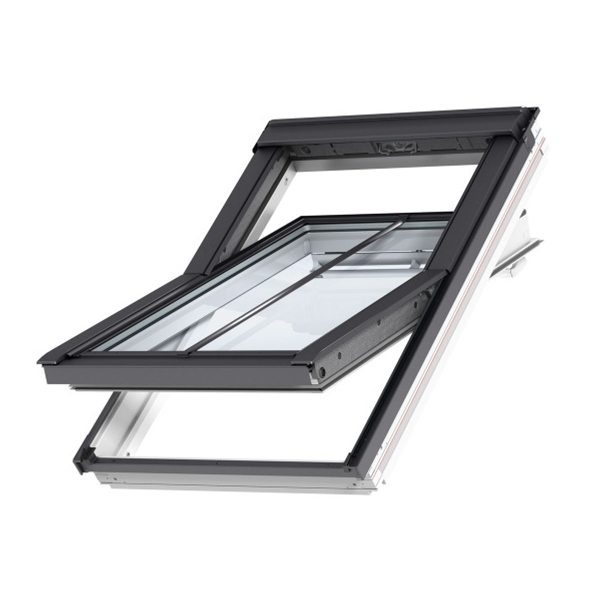

This is a double glazed white painted centre pivot window with laminated glazing and has a uValue of 1.3.

Please note this conservation window comes with a glazing bar, insulation collar (BDX) an underfelt collar (BFX) and a flashing kit for plain tiles up to 15mm thick (EDP).

New generation features
More daylight : up to 18% larger pane area.
Slim profile : slim profiles and larger pane means more glass and less frame.

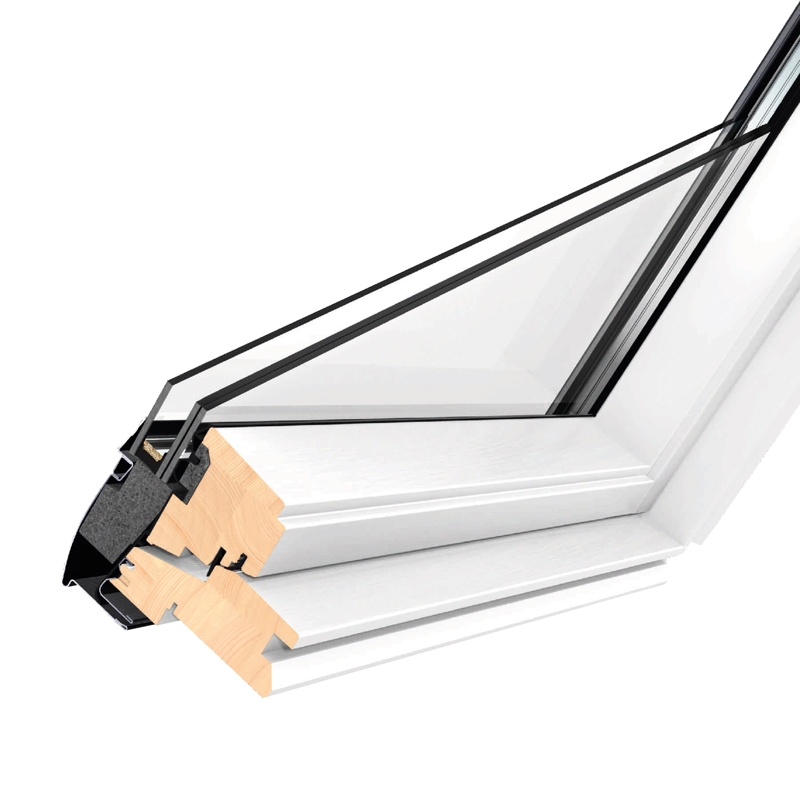

Thermo technology : innovative use of high performance insulation material.
More comfort : a more modern and attractive design with excellent ventilation and operation control.
Control bar : new design of the control bar with functionality icons.
Exterior design : improved exterior finish with a softer and more discrete expression.
Click-on covers : fewer screws with the new click-on covers.
Top cover : slimmer top cover.

Centre pivot conservation roof windows
When planning details that a window of traditional appearance is required, conservation roof windows should be considered. All of our conservation roof windows have the technically superior features of a VELUX roof window in a traditional black conservation style.
Black external profiles and glazing bar - RAL colour 9005.

Recessed installation for slate roofs.

Lacquered natural pine finish painted white - GGL

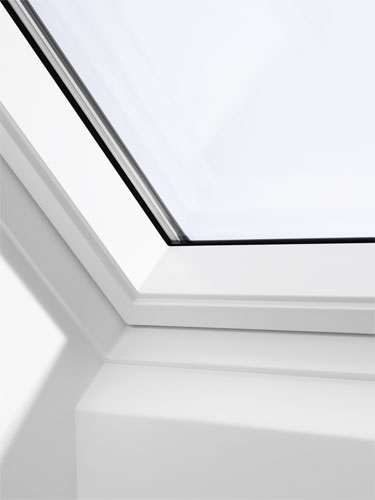

Pine core painted white.
Excellent value for money and easy to install.

Made from High quality natural pine.
Protective triple coat clear lacquer helps to preserve the timber of the window.
Easy to use top control bar for opening and even ventilation purposes when the window is closed.
Rotates 180° for easy cleaning.

- - 70 laminated glazing
6.4mm laminated inner pane offers additional safety.
Offers improved noise reduction compared to - -34 and - -59 glazing.
4mm toughened outer pane with low-E coating.

Plain tile flashings for profiles up to 15mm thick - EDP
VELUX provide a range of flashing options to suit your roof material.
For standard installation heights install the brackets at the top and bottom of the frame at the red line level.
Flashings for installing one roof window in plain tiles - max length of 340mm.
Maximum profile of 15mm.
Roof pitch between 25 and 90°.

Properties
• 10 year guarantee on windows and flashings.
Suitable for roof pitches between 25 and 90°.
BBA certified.

Dimensions

Width 550mm

Details

Code GGL Size CK04 - 55 x 98cm Height 980mm Finish White Painted Operation Manual
Glazing Security Glazing
