VELUX GGL SD5P2 White Painted Centre Pivot Conservation Window for 15mm Tiles
Product Description
This VELUX GGL SD5P2 is a centre pivot window with a white painted interior that is designed for fitting in conservation buildings. The external profiles and glazing bar are in RAL 9005 (black) to fit in with surrounding aesthetics and guidance on conservation buildings.
This double-glazed window comes with a glazing bar, BDX insulation collar, BFX underfelt collar and an EDJ recessed flashing kit for plain tiles up to 15mm thick.
VELUX centre pivot conservation window new generation features
- More daylight thanks to up to 18% larger pane area
- Slim profiles and larger pane means more glass and less frame
- Innovative use of high-performance insulation material
- More modern and attractive design with excellent ventilation and operation control
- New design of the control bar with functionality icons
- Improved exterior finish with a softer and more discrete expression
- Fewer screws with the new click-on covers
- Slimmer top cover
White painted finish and laminated glazing

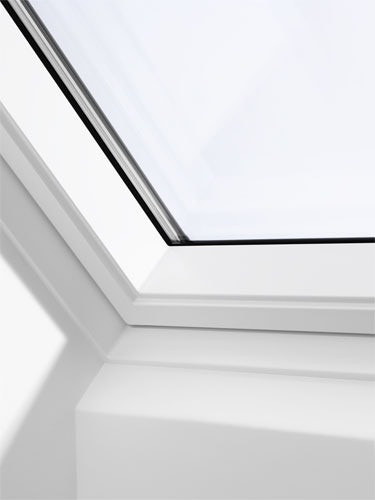

The natural pine make-up of this conservation window is lacquered and then painted white on the inside to keep a modern and clean finish inside the property, regardless of the RAL 9005 colouring of the outside of the conservation window.
- Pine core painted white
- Excellent value for money and easy to install
- Made from high quality natural pine
- Protective triple coat clear lacquer helps to preserve the timber of the window
The laminated glazing in this conservation window is 6.4mm laminated inner pane with a 4mm toughened outer pane. The low-E outer pane coating combined with the thick inner pane means improved noise reduction.
Manufactured for roofs with plain tiles up to 15mm thick
The recessed flashing that comes with this window provide a sleek and streamlined finish as the window sits flush in the roofline, instead of protruding. This double-glazed window comes with a glazing bar, BDX insulation collar, BFX underfelt collar and an EDJ recessed flashing kit for slate up to 8mm thick.
- 10-year guarantee on windows and flashings
- Suitable for roof pitches between 20 and 90°
- BBA certified
Product Documents
There are no product documents to show.
Specifications
Dimensions
Details
Similar Products
Frequently Bought Together
Questions & Answers
Question:
When you say it's for 90mm tiles, what measurement is that? Thickness of tile?
Answer:
That refers to the height of the tile when laid on a flat surface, so 90mm including any profile of the tile.
Question:
Does the Velux centre-pivot conservation roof light feature trickle ventilation as part of the locking mechanism?
Answer:
Yes the opening bar can be set in a half open position which allows ventilation through the top of the window.
Question:
Can you add electric opening and or blinds to conservation windows?
Answer:
You can only add electric Blinds to electric opening windows, if your windows are manual you would need to have solar blinds if you wanted automatic operation. If you email us your window details to sales@roofingsuperstore.co.uk we can advise further on the correct ones for you.
Product Reviews
VELUX GGL SD5P2 White Painted Centre Pivot Conservation Window for 15mm Tiles
|
"Quick, and got the job done" Peter Bagnall |
|
"Great service" J Gallant |
