VELUX GGL UK08 SD0L140 Smoke Vent System for 8mm Slates - 134cm x 140cm

Name: VELUX GGL UK08 SD0L140 Smoke Vent System for 8mm Slates - 134cm x 140cm
Brand: VELUX
SKU: GGL UK08 SD0L140
Price: 1619.48 GBP
Availability: LimitedAvailability

Code:

GGL UK08 SD0L140

Brand:

VELUX

Free UK Delivery

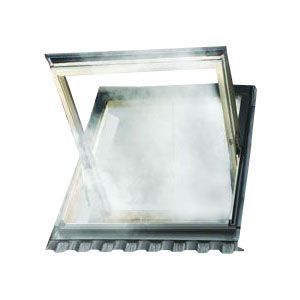

This VELUX GGL UK08 SD0L140 Smoke Vent System is an ideal way of releasing smoke and excess heat. Alongside an EDL flashing kit for slates up to 8mm thick, as well as the range of components for a complete system, it includes an electrically operated centre-pivot roof window i...Read More

View full product details

View questions about this product

Create a wishlist

Robert Lee

Description

VELUX smoke ventilation control systems offer a range of functions, such as automatic opening of smoke ventilation windows to full fire positions within a mere 60 seconds of smoke ventilation activation. In addition, smoke ventilation windows are thoroughly tested and conform to all EU requirements and can be opened to allow fresh air to circulate.

Features & Benefits: VELUX GGL UK08 SD0L140 Smoke Vent System for 8mm Slates - 134cm x 140cm

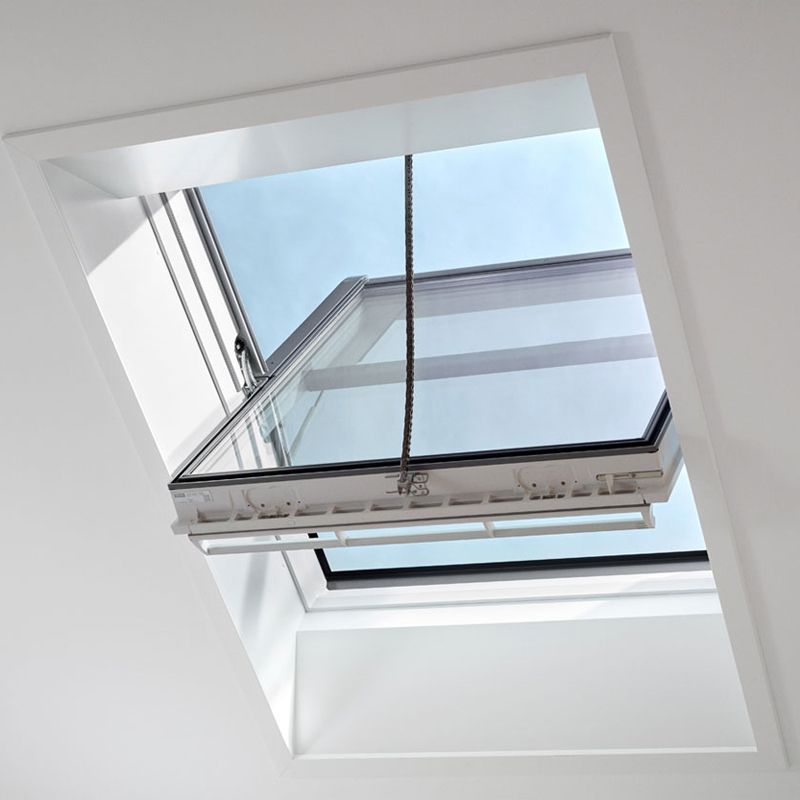

Electrically operated centre-pivot roof window in pine
Double glazed with a 1.3W/m²K uValue
Similar exterior to other VELUX sloped roof windows
For slates up to 8mm thick
Compatible with roof pitches from 15° up to 60° (90°)
1.5 m² (UK08 size) of smoke free ventilation area
10-year guarantee on windows and flashings
3-year guarantee on all electrical products and accessories

Equipped with double glazing (70), the window offers a multitude of benefits, such as a safety laminated inner pane that prevents shattered glass from spilling into your space in the event of breakage. An outer pane with toughened glass also ensures strength against external environmental conditions. The UV filter is included to safeguard your furnishings from the sun's harmful rays, which can often cause fading. As for the up to 35dB sound insulation and VELUX's rain noise reduction, the window is equipped to muffle heavy rainfall so that you can sleep well.

System Includes

Single electrically operated GGL centre-pivot roof window in pine with double glazing
1 x smoke sensor
1 x break glass point
1 x wall control unit
1 x slate flashing kit

Standards & Certification

Tested according to DIN EN 12101-2

Please note:

For aerodynamic smoke ventilation, the system is certified to EN ISO12101-1 for roof pitches between 15° and 60°. For geometric smoke ventilation, the system is certified to EN ISO12101-2 for roof pitches between 15° and 90°.
For compliance with aerodynamic smoke ventilation requirements, you can include the optional KFD external wind deflector.
The EDL flashing is not suitable for use with interlocking slate.

Specification

Dimensions

Size UK08 - 134 x 140cm

Details

Code GGL Finish Pine Operation Smoke Ventilation Glazing Double Glazing
