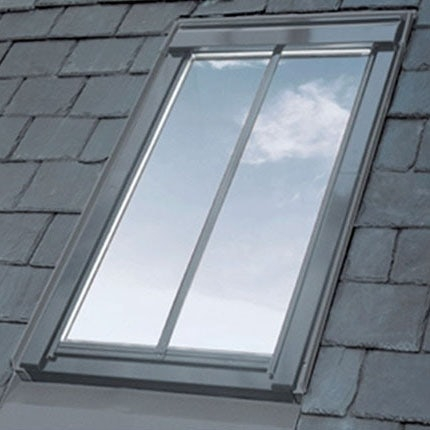

VELUX GPL MK08 SD5N2 Conservation Window for 8mm Slates - 78cm x 140cm
Description
This is a double glazed white painted top hung window with laminated glazing and has a uValue of 1.3.
Please note this conservation window comes with a glazing bar and a recessed flashing kit for slates up to 8mm thick (EDN).
Top hung windows can be used with roof pitches between 20 and 55 degrees. Special springs can be fitted to these windows to allow them to be used with roof pitches between 55 and 75 degrees. If this is required please specify in the 'special instructions' section of the checkout process or give us a call on 01752 692760.
This window can be used for emergency fire escape.
New generation features
More daylight: up to 18% larger pane area.
Slim profile: slim profiles and larger pane means more glass and less frame.
Thermo technology: innovative use of high performance insulation material.
More comfort: a more modern and attractive design with excellent ventilation and operation control.
Control bar: new design of the control bar with functionality icons.
Exterior design: improved exterior finish with a softer and more discrete expression.
Click-on covers: fewer screws with the new click-on covers.
Top cover: slimmer top cover.
Top hung roof windows
- GPL top hung windows open to any position up to 45 degrees.
- Opens outwards for an unobstructed view and feeling of extra space.
- Rotates 180 degrees for easy cleaning from the inside.
- These windows are intended for higher roof pitches.
Lacquered natural pine finish painted white - GPL
- Pine core painted white.
- Excellent value for money and easy to install.
- Made from High quality natural pine.
- Protective triple coat clear lacquer helps to preserve the timber of the window.
- Easy to use top control bar for opening and even ventilation purposes when the window is closed.
- - 70 laminated glazing
- 6.4mm laminated inner pane offers additional safety.
- Offers improved noise reduction compared to - -34 and - -59 glazing.
- 4mm toughened outer pane with low-E coating.
Recessed slate flashings - EDN
- Recessed flashings provide a sleek, streamlined finish as the window is installed deeper in the roof structure meaning that less of the window protrudes above the roofline.
- For recessed installation heights install the brackets at the sides of the frame and at the blue line level.
- Recessed flashings for installing one roof window into slate up to 8mm thick.
- Not for interlocking slate.
- Roof pitch between 20 and 55 degrees.
Properties
- 10 year guarantee on windows and flashings.
- BBA certified.
