Wakaflex® is a lead free, flexible, adhesive flashing designed to replace lead in most modern roofing applications. Properties Length : 5m. Width : 560mm. Weight : 10.4kg. Maximum pitch : 90°. Minimum roof pitch : the minimum pitch of the tile. Material : Polyis... Read More

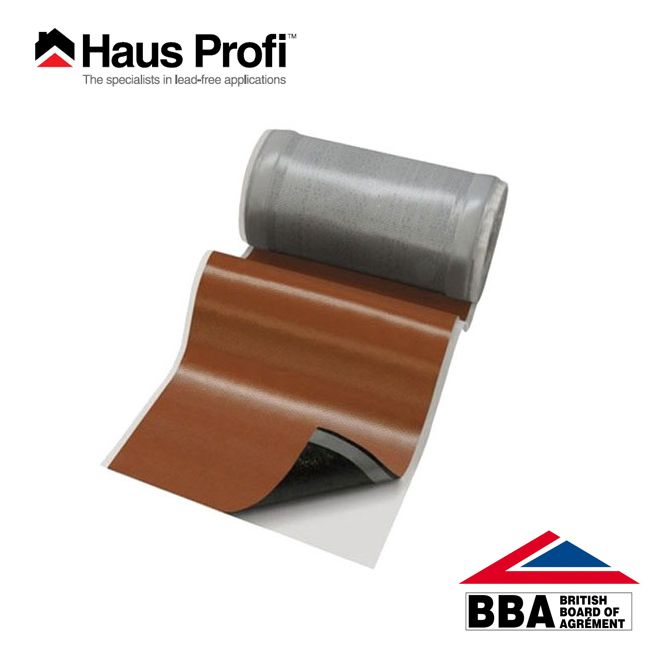

Wakaflex® is a lead free, flexible, adhesive flashing designed to replace lead in most modern roofing applications.
Properties
Length : 5m.
Width : 560mm.
Weight : 10.4kg.
Maximum pitch : 90°.
Minimum roof pitch : the minimum pitch of the tile.
Material : Polyisobuthylene (PIB) with aluminium-meshwork and butyl-adhesive tape.
Description
The product has many advantages over traditional lead flashings for those working in the construction industry, including the simple and quick installation process and non-toxic, lightweight material.
Easy application through high stretchability in both directions of the material and has a unique product composition with a self-welding effect.
Application
• Chimneys.

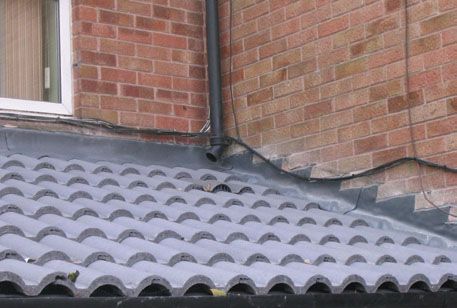

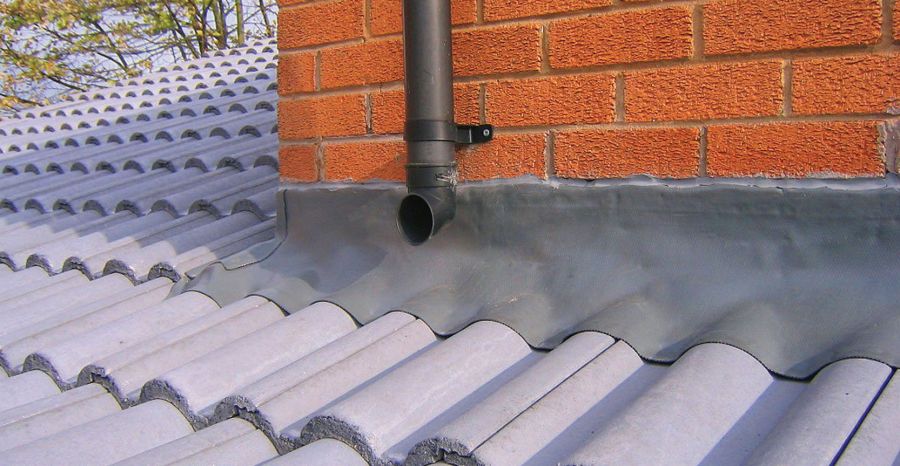

• All abutments at walls.
• Rising parts of structures such as dormers.
Compatibility
• Wakaflex® is not compatible with bituminous material.
• Wakaflex® must not be installed such that ponding can occur.
Installation
• Laps should be not less than 50mm using a roller to apply pressure.
• Ensure Wakaflex® is only laid on dry, dust and oil-free surfaces.
• Turn into brickwork joints or chase in by not less than 30mm. Use sealant to seal the joint.
• Where the joint is large or uneven, form a welt at the back of the joint and seal with Sealant as above.
• Use strips of Wakaflex® folded several times as wedges into brickwork to retain the flashing in place prior to sealing with sealant.
• At top edge abutments use Wakaflex® to cover the slates by a minimum of 150mm and turn up wall by 75mm. Fix in brickwork joints as above.
• At mansards, extend over slates on lower roof by a minimum of 150mm. Fit a lay board and tilting fillet to the upper roof and extend flashing 150 – 200mm up the slope. Form a 30 mm welt at the top. Nail into position at the top at approximately 150 mm centres.
• Fixing Instructions for use around chimneys are available.
• For use as Saddles, Ridge/Wall junctions, fixing around roof outlets or with our top edge abutment ventilator.
Guarantee
10 years against manufacturing defect.
