Wallbarn Adjustable Paving Minipad

Product Code:
WALLBARN-SP-MEG-MINI-Z
Brand:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

from
£1.63 Incl. VAT
Oops! Please select from the options

Description

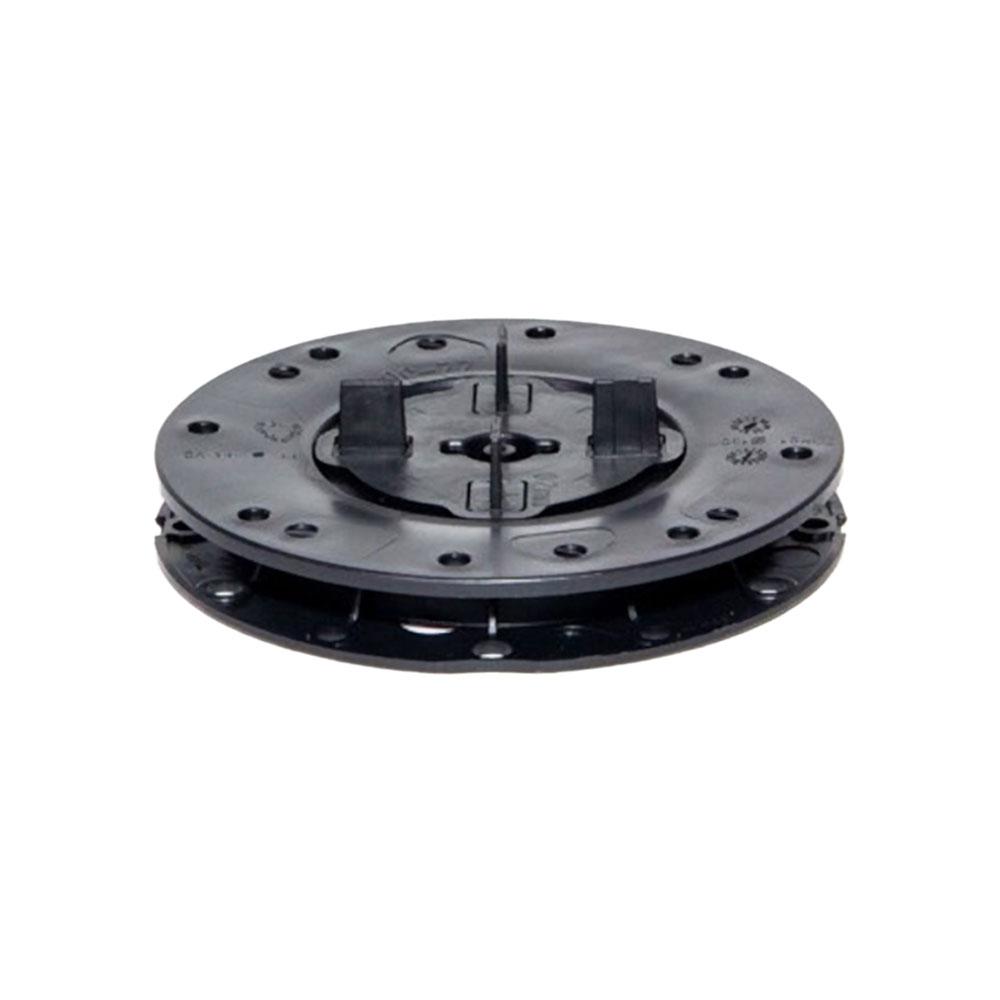

Wallbarn Minipads are a special smaller height pedestal suitable for suspended paving systems. They have been developed for customers who require a solution to areas where restricted and very low height thresholds exist but where minor alterations of height are still required to achieve a completely flat and seamless finish. They support paving slabs, promenade tiles on flat roofs, balconies, terraces and podium decks.

Wallbarn has the greatest range of height of pedestals in UK.

Minipads have been designed for use when working with very tight spaces. Adjustment can be made whilst the slab is in situ, so delays by constantly lifting the slab to change the height are avoided.

Features & Benefits

  • Fast and easy to install
  • Millimetre precise adjustments in height

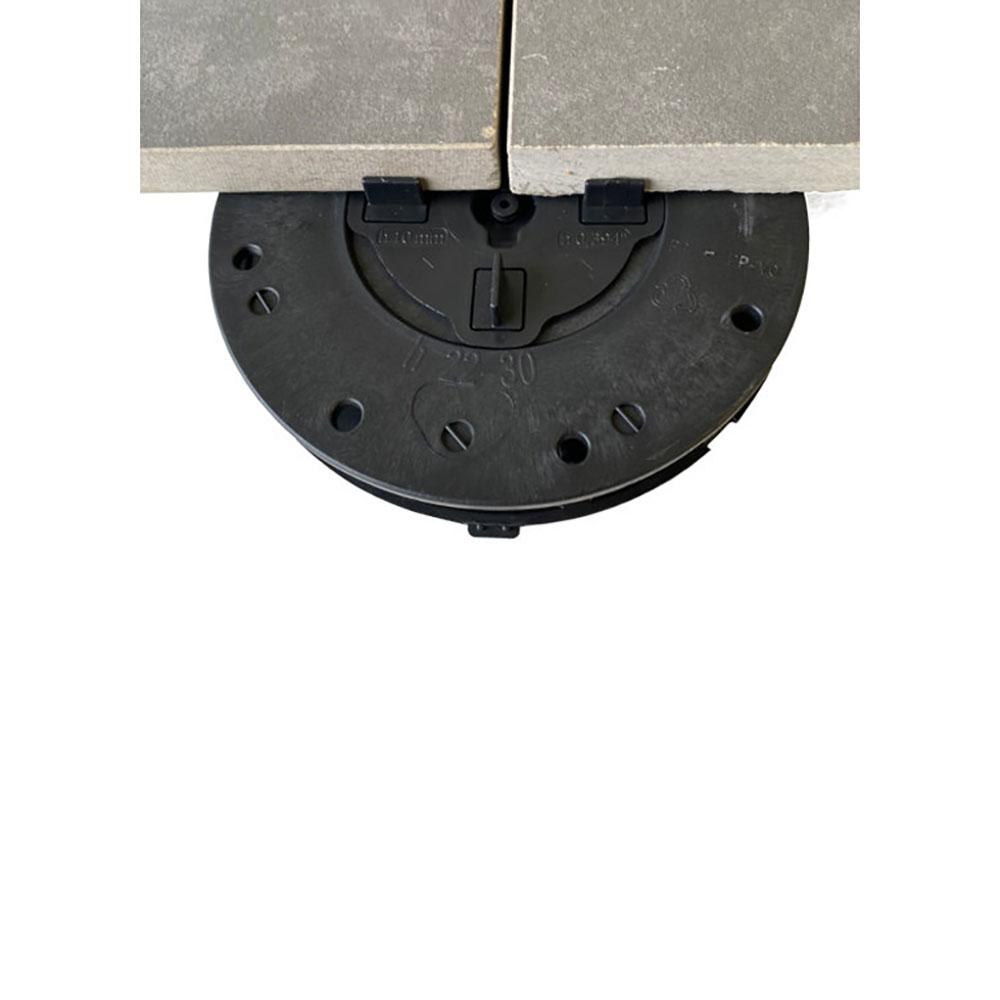

The lug fittings on the headpieces act as a straight paving guide, so all slabs will follow a uniform line. The headpieces and baseplates are both 150mm in diameter and will hold the edge of four separate slabs and give adequate support to the paving system. The stems are telescopic, so users can turn the pedestal until it “bites” to the correct height.

This is a suspended system - the weight of the slab holds everything in place. Changes to height can be made whilst the slab is in place. This saves a great deal of time and labour.

Even flat roofs are built to a small fall to allow adequate drainage. Minipads help to achieve a completely flat upper paving surface. Positioning lugs create a clear spacing between each slab which allows drainage and gives a clear, uniform paving line between slabs. The rainwater runs between and under the slabs, so there is no standing water left on the surface. They create a cavity between the sub-deck and the paving slabs which helps ventilate the structure and allows services such as pipes and cables to be hidden from view.

Minipads are available in heights from 10mm. They are manufactured from virgin fibre polypropylene. They will not become brittle in low temperatures.

A range of different lug size, slope correctors, levelling shims and accessories are available for use with Minipads from Wallbarn.

Details

Height 10mm - 20mm
10mm - 25mm
22mm - 30mm
28mm - 37mm
Type Adjustable

Downloads

There are no product downloads to show.

Questions & Answers

Question:

What riser would you use on the edges as so not to protrude?

Answer:

As the lugs on top are removable you would take these off the edge supports and slide them further under the tiles so they are flush and not exposed.

Have a question about this product?

Reviews

4.5 / 5 2 reviews
John Pollard
Reviewing Wallbarn 10-20mm Paving Minipad
12th September 2021
Great product
Pete
Reviewing Wallbarn 10-20mm Paving Minipad
1st August 2021
Extremely good… wide base provides good stability on an EPDM flat roof membrane to take heavy 900x600x20mm porcelain patio slabs (27kg each). Height adjustment is extremely fine & accurate to achieve a very sheer tile surface, and once set doesn’t slip. 0-5mm adjustment coupled with 5mm shims means pads always fit under tiles and cranked up to support. Really good device… clever sturdy design & easy to fit. Would certainly use this system again on a floating patio as it avoids a cement bed and solves drainage issues allowing water to flow between & under slabs. Extremely pleased with overall result.
