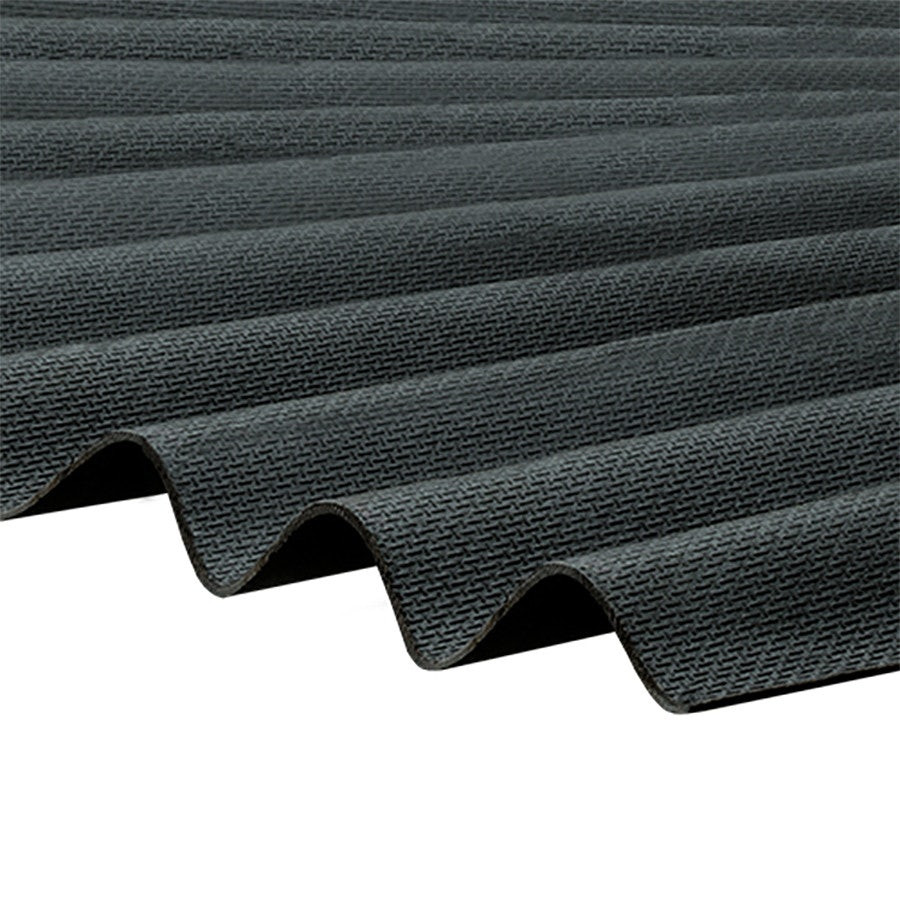

CORRAPOL-BT bitumen corrugated sheets provides a low cost, waterproof roofing solution. Bitumen corrugated sheets have been used on roofing applications for many years, outbuildings, sheds and log stores are just a couple of examples. CORRAPOL-BT is available in four colour options black, red, green & brown, which provides an option to match most colour schemes.

CORRAPOL-BT Bitumen Sheet Features & Benefits

• Lightweight
• Easy to cut to size
• Simple overlap joints
• Fast to install
• Excellent waterproof properties
• Maintenance free
• Provides privacy
• Good rigidity

CORRAPOL-BT Sheet Installation

• Measure the roof to work out the number of sheets, eaves fillers and fixings required
• To ensure the roof is watertight and weatherproof, install CORRAPOL-BT eaves fillers along fixing points of the roof. Making sure to use either the plastic headed nails or screw cap fixings through the corrugation peak and not the trough
• Install the first CORRAPOL-BT roofing sheet. Overlap side verge, measure and saw excess roofing sheet allowing an overlap eave of 70mm maximum
• Install the second CORRAPOL-BT roofing sheet. To ensure correct overlap details refer to the attached data sheet
• Install the final CORRAPOL-BT roofing sheet. To avoid any vertical cuts, overlap the roofing sheets by more than two corrugation peaks, to the exact match of the roof dimensions
• Fold and fix roof verges on each side
• Install the CORRAPOL-BT roof ridge panels. Overlap roof ridge panels by 22cm minimum. Use screw or nail fixings every two corrugation peaks

Applications

• Sheds
• Garages
• Log stores
• Children’s playhouses
• Chicken pen covered areas
• Residential bicycle covered areas
• Covered walk ways

Specifications

Length: 2000mm

Width: 930mm

Material: Bitumen
