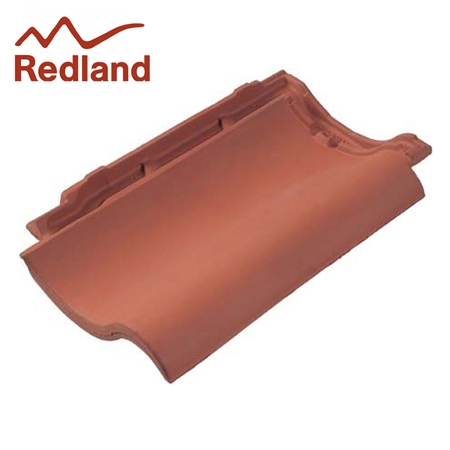

Redland Cathedral Clay Roof Pantile Smooth - Terracotta

Code:
5921/80
Brand:

Cathedral Clay Pantiles have been designed to reflect the history behind what is one of the most eye-catching roof tile profiles ever created, to produce a striking and attractive roof. Precision manufactured using the latest clay technology, they combine the character of a n...Read More

Create a wishlist

"Good quality product,good price an…"

A satisfied buyer

Description

Cathedral Clay Pantiles have been designed to reflect the history behind what is one of the most eye-catching roof tile profiles ever created, to produce a striking and attractive roof.

Precision manufactured using the latest clay technology, they combine the character of a natural clay product with the performance of a modern interlocking tile, enabling this distinctive look to be achieved at roof pitches as low as 22.5°.

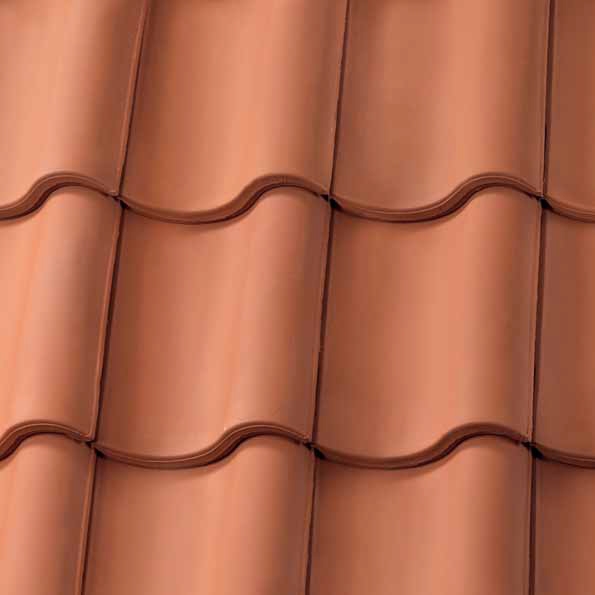

Available in two popular colours that will mellow with age, Cathedral Pantiles retain all the charm and visual appeal of a traditional clay pantile with the added benefit of high performance.

Certification

BBA certified.
Postel Clay Romans conform to BS EN 1304:2013 Clay roofing tiles and fittings - Product definitions and specifications.

Properties

Size : 411mm x 262mm.
Minimum pitch : 22.5° at 61mm headlap.
30° at 51mm headlap.
Maximum pitch : 90° - subject to fixing specification..
Maximum headlap : 71mm.
Minimum gauge : 340mm.
Maximum gauge : 350mm below 30°.
360mm at 30° and over.
Tile thickness : 21mm.
Hanging length : 358mm approximately.
Coverage : 12.4 tiles/m2.
Weight : 3.1 tonnes/1000 tiles approx.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 2.74m/m2 at max gauge.
Tile finish : smooth finish.
Tile profile : clay pantile.

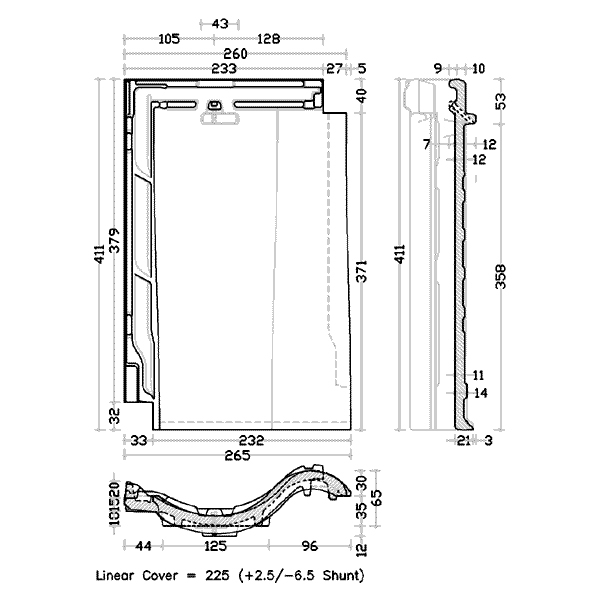

Dimensions

Size 411mm x 265mm

Details

Type Tile Finish Smooth Colour Terracotta Material Clay
Profile Cathedral Clay Pantile Minimum Pitch 22.5 Degrees

Questions & Answers

Question:

Could I have a sample of the above tile please?

Answer:

Unfortunately Redland no longer produce this tile so this would not be possible.
