Redland Fontenelle Interlocking Clay Roof Tile Smooth - Red

Code:
5961/80
Brand:
Free UK Delivery

A clay interlocking tile with a Plain Tile appearance when laid. The trend towards plain tile appearance roofs has extended in recent times to clay tiles. In recognition of this, we have launched Fontenelle, an interlocking clay plain tile. Following the launch of Fontenelle...Read More

Create a wishlist

"Great products"

Celsius Windows

Description

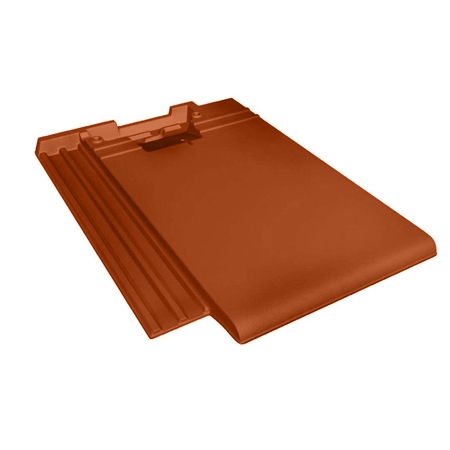

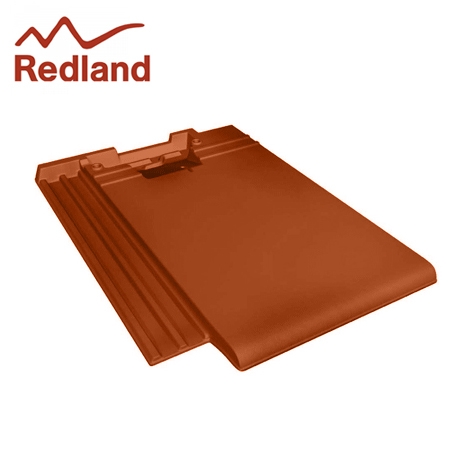

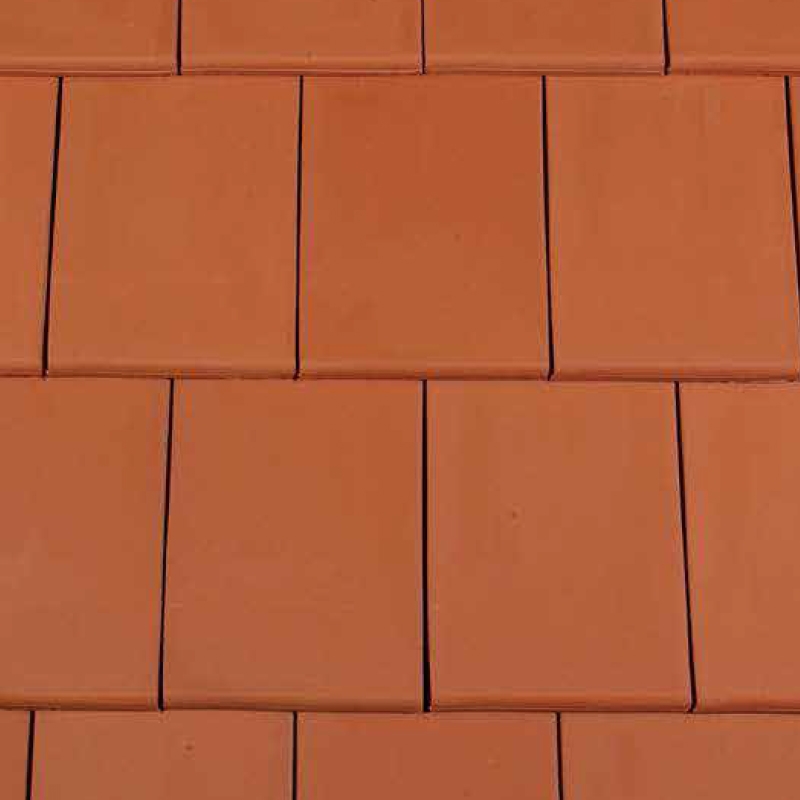

A clay interlocking tile with a Plain Tile appearance when laid.
The trend towards plain tile appearance roofs has extended in recent times to clay tiles. In recognition of this, we have launched Fontenelle, an interlocking clay plain tile.

Following the launch of Fontenelle in colour 82 Brindle, we have extended the range to include two further colours: 79 Black and 80 Red.
The tile range comprises main tiles, Tile-and-a-Halves, Left Hand Verge Tiles and Left Hand Verge Tile-and-a-Halves.

Certification

BBA certified.
Rosemary Clay Classic Plain Tiles conform to BS EN 1304: 2013 Clay roofing tiles and fittings - Product definitions and specifications.

Properties

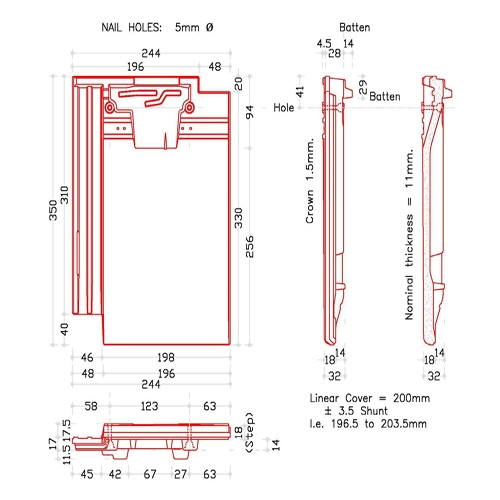

Size : 350mm x 244mm.
Minimum pitch : 20°.
Maximum pitch : 90°.
Minimum headlap : 95mm.
Maximum headlap : 115mm.
Minimum gauge : 240mm.
Minimum gauge : 255mm.
Tile thickness : 18mm.
Hanging length : 321mm approximately.
Coverage : 19.6 tiles/m2.
Weight : 47kg per m2.
Batten size : 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required : 3.92m/m2 at max gauge.
Tile finish : smooth finish.
Tile profile : interlocking clay plain tile.

Dimensions

Size 350mm x 224mm

Details

Type Tile Finish Smooth Colour Red Material Clay
Profile Fontenelle Interlocking Minimum Pitch 20 Degrees
