VELUX GGL SD5N2 White Painted Centre Pivot Conservation Window for 8mm Slate
Description
This VELUX GGL SD5N2 is a centre pivot window with a white painted interior that is designed for fitting in conservation buildings. The external profiles and glazing bar are in RAL 9005 (black) to fit in with surrounding aesthetics and guidance on conservation buildings.
This double-glazed window comes with a glazing bar, BDX insulation collar, BFX underfelt collar and an EDJ recessed flashing kit for slate up to 8mm thick.
VELUX centre pivot conservation window new generation features
- More daylight thanks to up to 18% larger pane area
- Slim profiles and larger pane means more glass and less frame
- Innovative use of high-performance insulation material
- More modern and attractive design with excellent ventilation and operation control
- New design of the control bar with functionality icons
- Improved exterior finish with a softer and more discrete expression
- Fewer screws with the new click-on covers
- Slimmer top cover

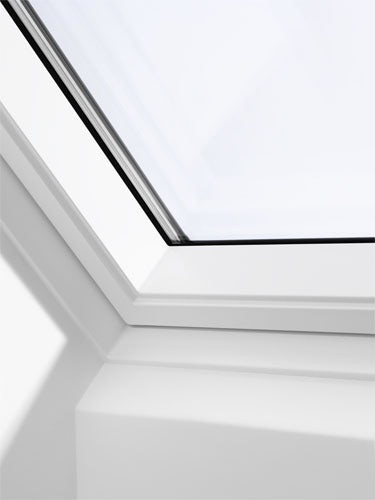

White painted finish and laminated glazing
The natural pine make-up of this conservation window is lacquered and then painted white on the inside to keep a modern and clean finish inside the property, regardless of the RAL 9005 colouring of the outside of the conservation window.
- Pine core painted white
- Excellent value for money and easy to install
- Made from high quality natural pine
- Protective triple coat clear lacquer helps to preserve the timber of the window
The laminated glazing in this conservation window is 6.4mm laminated inner pane with a 4mm toughened outer pane. The low-E outer pane coating combined with the thick inner pane means improved noise reduction.
Manufactured for roofs with 8mm thick slates
The recessed flashing that comes with this window provide a sleek and streamlined finish as the window sits flush in the roofline, instead of protruding. This double-glazed window comes with a glazing bar, BDX insulation collar, BFX underfelt collar and an EDJ recessed flashing kit for slate up to 8mm thick.
- 10-year guarantee on windows and flashings
- Suitable for roof pitches between 20 and 90°
- BBA certified
Specification
Dimensions
CK06 - 55 x 118cm
FK06 - 66 x 118cm
MK06 - 78 x 118cm
MK08 - 78 x 140cm
SK01 - 114 x 70cm
UK04 - 134 x 98cm Width 550mm
660mm
780mm
1140mm
1340mm
Details
980mm
1180mm
1400mm Finish White Painted Operation Manual
Downloads
There are no product downloads to show.
Questions & Answers
Question:
Does this come with the flashing kit?
Answer:
Yes a slate flashing kit
Question:
Does this product also come in a pine internal finish?
Answer:
Hi Tom
Not as standard - but i will get it quoted for you and send you a personal email
Question:
980mm is the height of the window I like. Is it possible it might fit if there is an internal beam limiting the internal space to around 930mm?
Answer:
Unfortunately not, to fit the window you would need an aperture of at least 980mm high to fit to, then also adding a little extra for adjustment when fitting. If you would like to discuss other options please give us a call on 01752 692760.
