VELUX GGL MK04 Centre Pivot Roof Window - 78cm x 98cm
Description
These VELUX MK04 Roof Windows are 78cm x 98cm and come in a variety of options.
New generation features
More daylight: up to 18% larger pane area.
Slim profile: slim profiles and larger pane means more glass and less frame.
Thermo technology: innovative use of high performance insulation material.
More comfort: a more modern and attractive design with excellent ventilation and operation control.
Control bar: new design of the control bar with functionality icons.
Exterior design: improved exterior finish with a softer and more discrete expression.
Click-on covers: fewer screws with the new click-on covers.
Top cover: slimmer top cover.
VELUX Glazing Options:
(070) Double Glazing: VELUX’s standard safety double glazing with laminated inner pane and toughened outer pane, uValue of 1.3 W/m2k.
(066) Triple Glazing: Laminated inner pane and toughened outer pane with enhanced energy efficiency and an anti-dew and easy-to-clean coating, uValue of 1.0 W/m2k.
(062) Enhanced Noise Reduction Glazing: Triple glazed with laminated inner pane and toughened outer pane. Anti-dew coating with further enhanced noise reduction, uValue 0.92 W/m2k
(070Q) Security Glazing: Double glazed laminated inner pane and toughened outer pane with enhanced security, uValue 1.3 W/m2k.
(068) Noise Reduction Glazing: Triple glazed laminated inner pane and toughened outer pane with rain noise reduction, uValue 1.1 W/m2k.
VELUX Operation Options:
Manual Operation: Easy to open and close using the top control bar, for the harder to reach manual operations, use the VELUX telescopic window pole.
INTEGRA Electric Operation: Operated with a convenient wall switch which is simply plugged into a power supply, with rain sensors for automatic closing when it rains.
INTEGRA Solar Operation: PV solar cell on external window gives you an electric roof window powered by the sun so no need for connection to a mains power supply, also features rain sensors for automatic closing when it rains.
VELUX Finish Options:

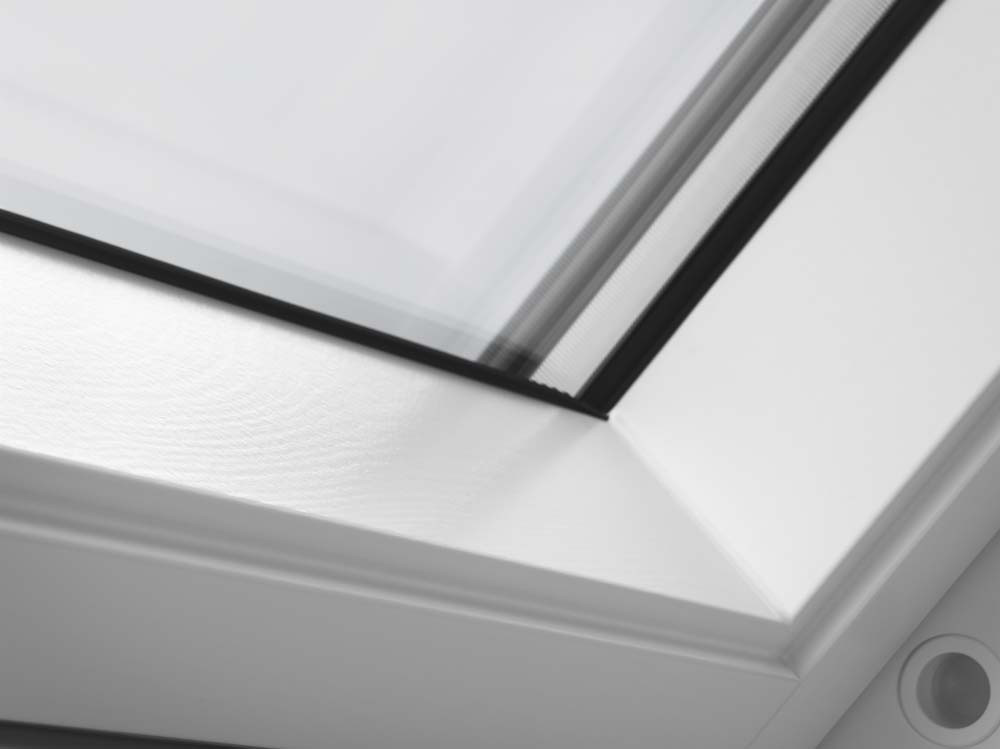

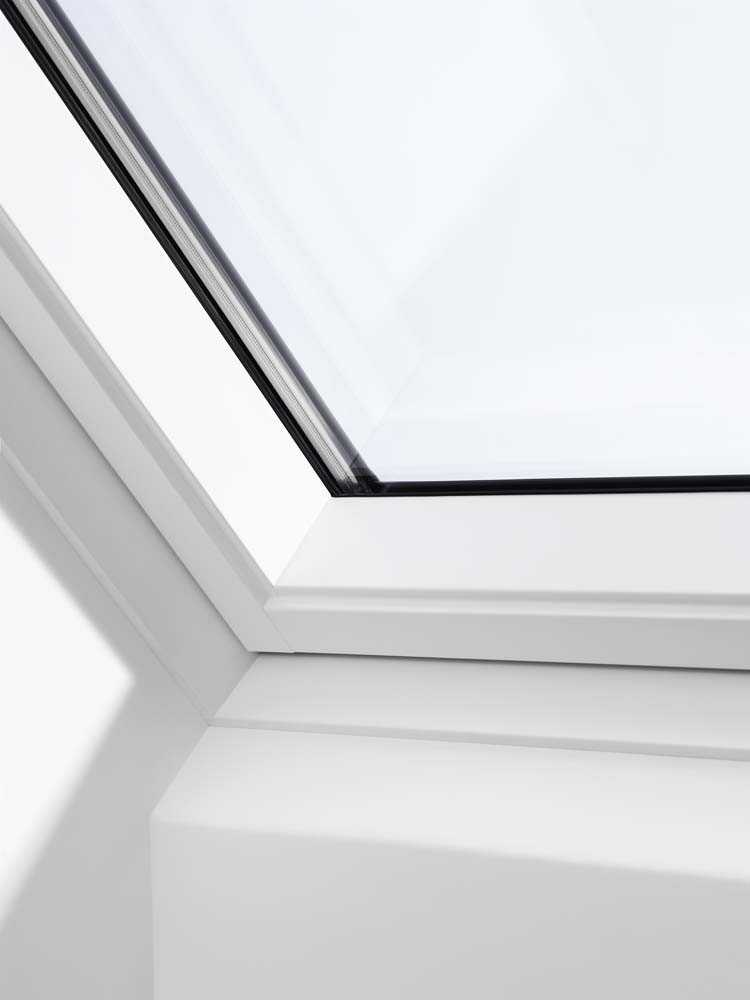

White Polyurethane: Thermally moulded timber core encased in moisture-resistant white polyurethane, making it the first choice for humid rooms such as bathrooms and kitchens.
White Painted: Pine core with a highly UV resistant water-based breathable bright white paint coating for a crisp modern look.
Pine Finish: Protective triple coating of clear lacquer helps to preserve the timber. This finish matched perfectly with more traditional interiors.
Specification
Dimensions
Details
White Painted Operation Manual
Solar
Electric
Enhanced Noise Reduction Glazing
Noise Reduction Glazing
Security Glazing
Triple Glazing
Downloads
There are no product downloads to show.
Questions & Answers
Question:
Hi, does the electric VELUX window needs a different type of flashing because it's electric compare to simple ones please.Or just depends on the type of tiles, thank you
Answer:
There are different types of flashing I will email you a quote.
Question:
Does it come with flashing kit
Answer:
No You will need to order one
Question:
Hi there, looking for this size window for a bathroom so require obscured glass. Is there an option for this please regards john
Answer:
Hi John
You can no longer buy obscured glass. You could buy the film yourself and add it or you could buy a blind. I have sent you a quote please check the flashing is correct. If you need anymore help give us a call
Question:
Any discount for ten
Answer:
Good Morning Les
I am working on a better price for you and will send you a quote
Question:
Your quotation for three Velux windows , manual ,external black colour , opening from bottom , ventilation siz 780 mmx 980mm , U-value 1.3 or less
Answer:
Hi Foad
I will send you a personal email with a quote
Question:
Hi What colour is the outside of this product? Thanks
Answer:
Hi Emma
Dark grey
Question:
Hi. What flashing kit should I order for the Velux GGLMk04 when installed on a pitched roof using Cedar shingles please?
Answer:
Hi Simon
you would need the EDW flashing and you would have to remove some of the insulation off the back of the flashing in order to get it to sit correctly
Question:
what is the flashing code for slate?
Answer:

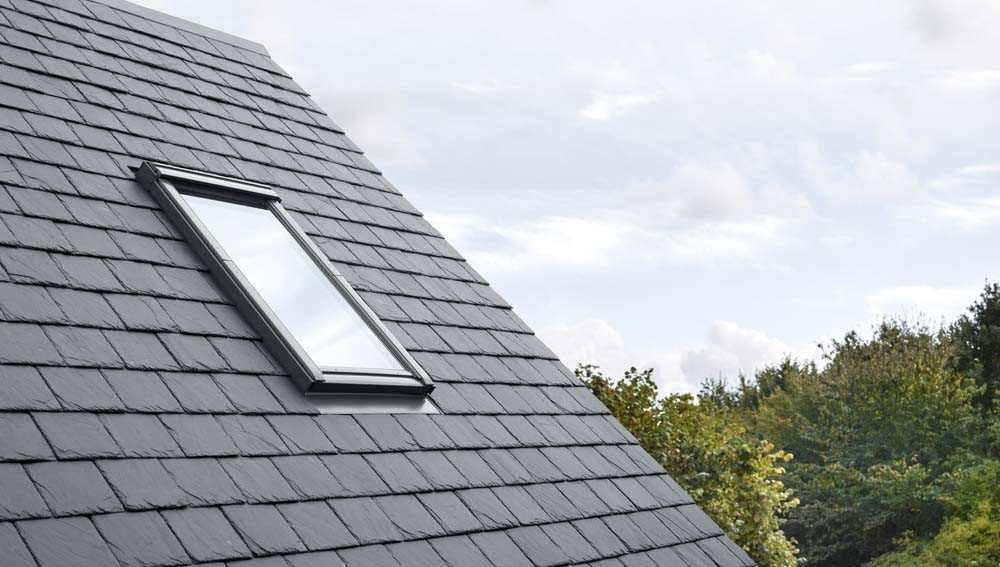

For slate you would need product code EDL MK04 0000.
If doing a recessed Slate installation you would need EDN MK04 0000.
Question:
What flashing is required for a 78cm x 98cm Velux rooflight? The roof is large concrete tiles.
Answer:

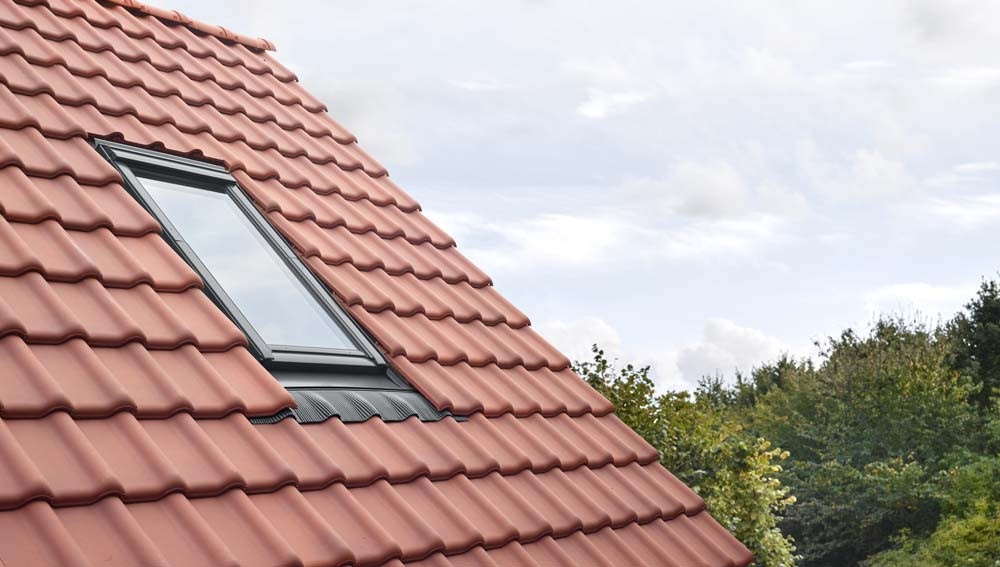

For a large concrete interlocking or profiled tile you would need the below EDW Flashing kit.
https://www.roofingsuperstore.co.uk/product/velux-edw-mk04-0000-single-120mm-tile-flashing-78cm-x-98cm.html
